Produktbeskrivning

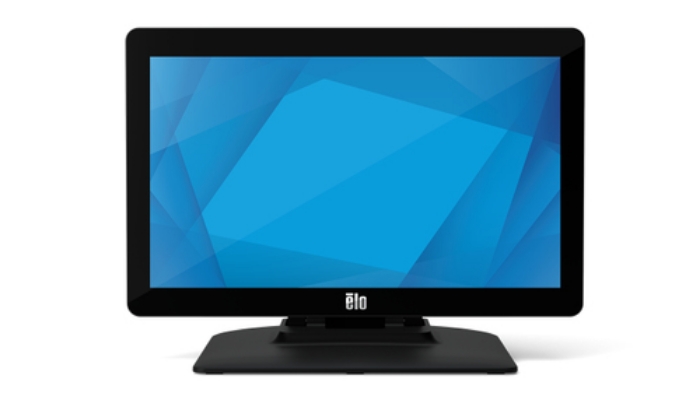

Elo’s 1502L
Touchscreen Monitor
The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection
The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

One for You.
One for Your Customers.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.



Viktiga egenskaper

Elo Touch Solutions E125496. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	15.6 "
Display technology	LED
Panel type	TFT
Display resolution	1920 x 1080 pixels
HD type	Full HD
Touchscreen	Yes
Native aspect ratio	16:9
Response time	30 ms
Contrast ratio (typical)	700:1
Viewing angle, horizontal	160 °
Viewing angle, vertical	160 °
Display number of colours	262144 colours
Vertical scan range	50 - 75 Hz
Horizontal scan range	31.5 - 82 kHz
Supported graphics resolutions	1280 x 720 (HD 720),720 x 400,1280 x 800 (WXGA),1280 x 960,1280 x 1024 (SXGA),1360 x 768 (WXGA),800 x 600 (SVGA),1366 x 768,1440 x 900 (WXGA+),1024 x 768 (XGA),640 x 480 (VGA),640 x 400,1680 x 1050 (WSXGA+)

HDMI ports quantity	1
DC-in jack	Yes

Built-in speaker(s)	Yes
RMS rated power	2 W

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 100 mm
Anti-glare screen	Yes

On Screen Display (OSD)	Yes
International Protection (IP) code	IPX1

Power consumption (typical)	9.5 W
Power consumption (standby)	1.87 W
Power consumption (off)	0.2 W
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	12 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Width (with stand)	386.96 mm
Depth (with stand)	32.4 mm
Height (with stand)	244.39 mm
Weight (with stand)	1164 g

Package width	175 mm
Package depth	451 mm
Package height	320 mm
Package weight	3390 g

Cables included	AC,USB Type-A to USB Type-C,HDMI

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Viewable size, vertical	193.5 mm
Quick start guide	Yes
Viewable size, horizontal	344.16 mm
Package type	Box
