Produktbeskrivning

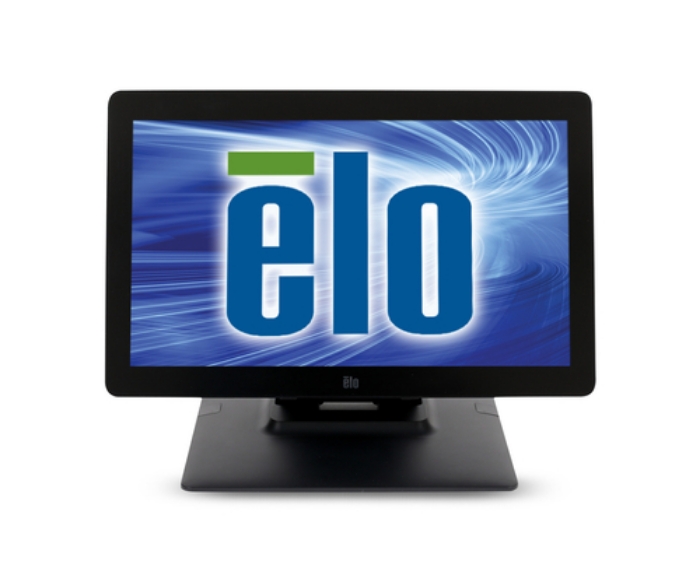

The Elo M-Series 1502L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness at the point of sale. The sleek wide aspect ratio touchscreen features full HD edge-to-edge glass with display area real estate to showcase engaging, memorable and rewarding content. An HD display model is available for transactional and other applications not requiring 1920x1080 resolution. For environments where space is scarce, the 1502L is an ideal POS terminal screen or stylish interactive information display. Built to withstand the rigors of continuous public use, the 1502L is well suited for high use retail venues. The sleek, thin look pairs well with any modern store environment.

The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.

Optional color coordinated retail accessories include a Magnetic Stripe Reader (MSR), customer display, barcode scanner and Near Field Communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

The 1502L is offered with IntelliTouch Pro projected capacitive (PCAP) touch technology in a zero-bezel design with 10-touch interaction and an anti-glare surface.



Viktiga egenskaper

Elo Touch Solutions 1502L. Display diagonal: 39.6 cm (15.6"), Display resolution: 1366 x 768 pixels, Display brightness: 187 cd/m². Product colour: Black, Mean time between failures (MTBF): 50000 h. AC adapter output voltage: 12 V. Package width: 457 mm, Package depth: 181 mm, Package height: 347 mm. Certification: cUL, IC, Europe CE, Japan VCCI, United States UL, FCC



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1366 x 768 pixels
Display brightness	187 cd/m²
Touchscreen	Yes
Response time	10 ms
Contrast ratio (typical)	600:1
Viewing angle, horizontal	90 °
Viewing angle, vertical	65 °

Product colour	Black
Mean time between failures (MTBF)	50000 h

AC adapter output voltage	12 V

Package depth	181 mm
Package width	457 mm
Package height	347 mm
Package weight	5080 g

Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 95 %
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Certification	cUL, IC, Europe CE, Japan VCCI, United States UL, FCC
