Viktiga egenskaper

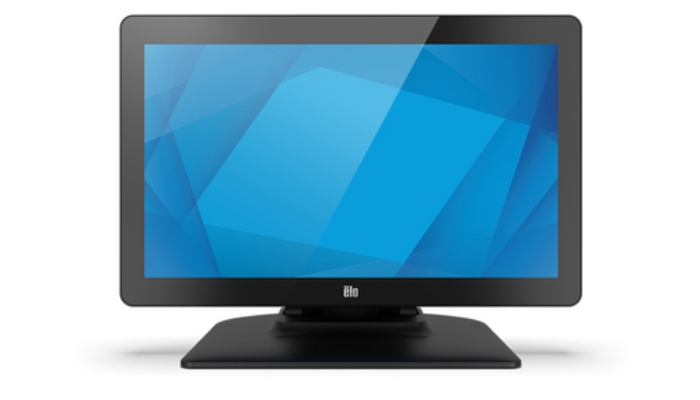

Elo Touch Solutions 1502LM. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 30 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 160°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	TFT
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness	250 cd/m²
Response time	30 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800,1280 x 960,1360 x 768 (WXGA),1366 x 768,1440 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Contrast ratio (typical)	700:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	160 °
Viewing angle, vertical	160 °
Display number of colours	16.7 million colours
Viewable size, horizontal	344.16 mm
Viewable size, vertical	193.5 mm
Digital horizontal frequency	31.5 - 82 kHz
Digital vertical frequency	50 - 75 Hz

NVIDIA G-SYNC	No
AMD FreeSync	No

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	4 W
Built-in microphone	No

Market positioning	Medical
Product colour	Black
International Protection (IP) code	IP22

USB Touch port	Yes
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
PC Audio in	Yes
DC-in jack	Yes

VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Wall mountable	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),DEU,ENG,ESP,FRE,ITA,JPN

Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	10 kWh
Power consumption (typical)	9.5 W
Power consumption (standby)	1.27 W
Power consumption (off)	0.2 W
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 95 %

Cables included	AC,HDMI,USB

Width (without stand)	244.39 mm
Depth (without stand)	32.4 mm
Height (without stand)	386.96 mm
Weight (without stand)	1640 g

Package width	204 mm
Package depth	344 mm
Package height	451 mm
Package weight	5100 g
