Produktbeskrivning

Medical Grade Touchscreen Monitors

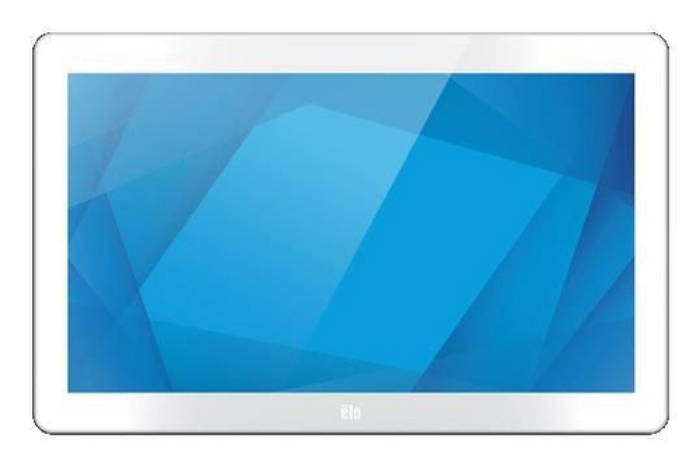

The 1502LM Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with critical healthcare features, including adherence to IP-22 and IEC 60601-1 standards. Its compact form factor and sleek design make it ideal for patient entertainment, virtual health, patient monitoring, respiratory and medication dispensing devices, and laboratories.

Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

Interactive Patient Care
Enhance the patient’s experience with the 1502LM medical grade touch screen monitor at the bedside for entertainment applications or educational content keeping them informed during the course of their treatment.

Virtual Health and Patient Monitoring
Combining virtual health solutions with patient monitoring capabilities enables healthcare providers to save time, increase satisfaction and enhance care all at a lower cost. Whether from a medical cart, in a clinic or in a patient room, pair Elo’s medical grade touch screen monitor with the Elo Edge Connect Webcam to engage, educate and personalize care for patients outside traditional office visits.

Purpose-built for Healthcare
The 1502LM offers installation flexibility in a variety of healthcare environments to support increased communication between patients and providers.

Medical Device-Ready
With a full line of touch technologies and display solutions, Elo can customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From patient rooms to laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.



Viktiga egenskaper

Elo Touch Solutions 1502LM. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Product colour: White



Teknisk specifikation

Display diagonal	15.6 "
Display technology	LED
Panel type	TFT
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	30 ms
Contrast ratio (typical)	700:1

HDMI ports quantity	1
USB port	Yes
USB connector type	USB Type-C
PC Audio in	Yes

Built-in speaker(s)	Yes
RMS rated power	4 W

Product colour	White
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Anti-glare screen	Yes

Purpose	Healthcare
On Screen Display (OSD)	Yes
International Protection (IP) code	IP22

Power consumption (typical)	9.5 W
Power consumption (standby)	1.27 W
Power consumption (off)	0.2 W
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	10 kWh
Energy efficiency scale	A to G

Display width	244.39 mm
Display depth	32.4 mm
Display height	386.96 mm
Display weight	1640 g
Width (with stand)	284.65 mm
Depth (with stand)	199.12 mm
Height (with stand)	386.96 mm
Weight (with stand)	3080 g

Package width	204 mm
Package depth	344 mm
Package height	451 mm
Package weight	5100 g

Stand included	No
Cables included	AC,HDMI,USB

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Wall mountable	Yes
