Produktbeskrivning

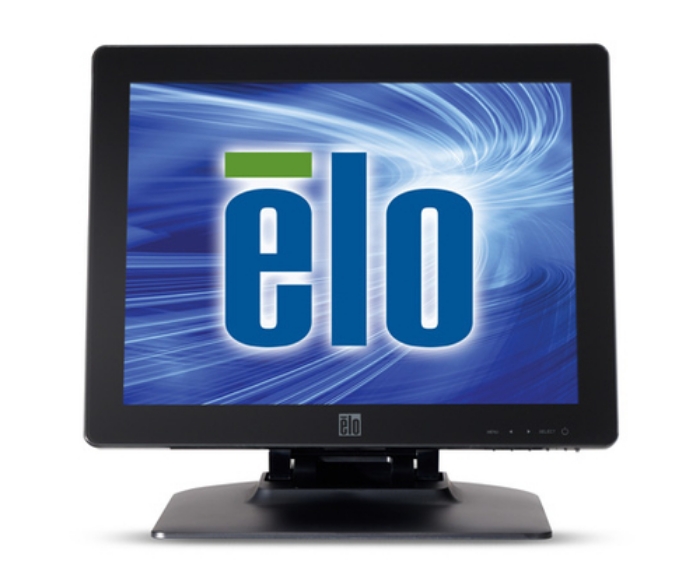

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.
The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.
Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
Viktiga egenskaper
Elo Touch Solutions 1523L. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, Display brightness: 270 cd/m². Product colour: Black, Mean time between failures (MTBF): 50000 h. Package width: 447 mm, Package depth: 207 mm, Package height: 380 mm
Teknisk specifikation
Display
| Display diagonal | 15 " |
|---|
| Display resolution | 1024 x 768 pixels |
|---|
| Display brightness | 270 cd/m² |
|---|
| Touchscreen | Yes |
|---|
| Response time | 16 ms |
|---|
| LED backlight | Yes |
|---|
| Viewing angle, horizontal | 160 ° |
|---|
| Viewing angle, vertical | 140 ° |
|---|
| Contrast ratio (typical) | 700:1 |
|---|
| Native aspect ratio | 4:3 |
|---|
Features
| Product colour | Black |
|---|
| Mean time between failures (MTBF) | 50000 h |
|---|
Packaging data
| Package depth | 207 mm |
|---|
| Package height | 380 mm |
|---|
| Package width | 447 mm |
|---|
| Package weight | 7000 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
