Produktbeskrivning

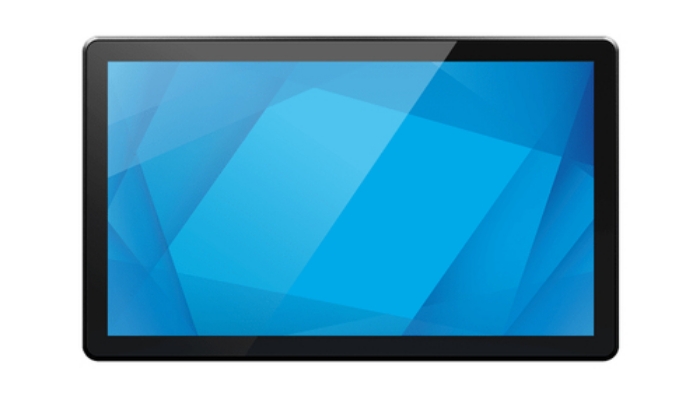

Elo's 1564L 15-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1564L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.

Brilliant, optically-bonded
TouchPro® PCAP display.
The 15-inch 1564L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.

Navigate the OSD directly
on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.

Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

Designed for easy integration.
Elo’s 15-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.

Computing power that
scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.



Viktiga egenskaper

Elo Touch Solutions 1564L. Product design: Interactive flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black



Teknisk specifikation

Display diagonal	15.6 "
Display technology	LCD
LED backlight	Yes
Panel type	LCD
LED backlighting type	Edge-LED
Display resolution	1920 x 1080 pixels
Display brightness	450 cd/m²
HD type	Full HD
Touchscreen	Yes
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	25 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Active display area (W x H)	344.16 x 193.59 mm
Vertical scan range	50 - 75 Hz
Horizontal scan range	30 - 80 kHz

HDMI ports quantity	1
HDMI version	1.4
DVI port	No
DisplayPorts quantity	1
DisplayPort version	1.2
USB port	Yes
USB ports quantity	1
USB version	2.0
USB connector type	USB Type-C
DC-in jack	Yes

Product design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm

Purpose	Commercial
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	12.95 W
Power consumption (standby)	9.36 W
Power consumption (sleep)	0.45 W
Power consumption (off)	0.25 W

Computer system	No
Built-in processor	No

Width	375 mm
Depth	224.4 mm
Height	31.6 mm
Weight	2230 g

Package width	450 mm
Package depth	302 mm
Package height	141 mm
Package weight	4120 g

Cables included	HDMI,USB Type-A to USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Certification	CE, TUV, UKCA, VCCI, KCC, NoM, BSMI, UL, FCC, CB, RoHS, China RoHS, WEEE

Sustainability certificates	ENERGY STAR
