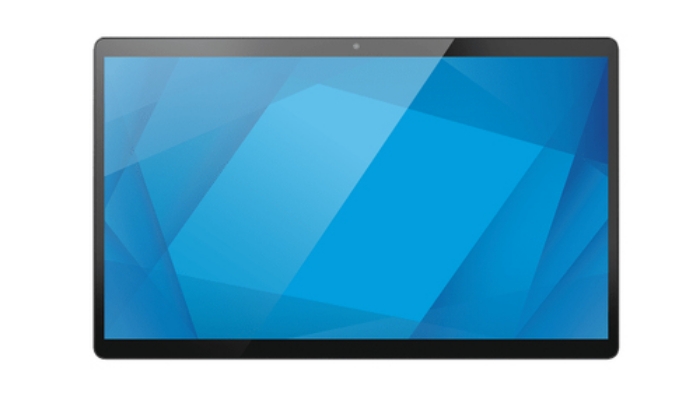

I-Series 3 Slate with Intel®
Brilliant, beautiful and razor thin.

Interactive signage has never looked so good.

Create your POS system.
Transform the I-Series 3 Slate it into a powerful, industrial-design POS system that scales with your business.

Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 11th Generation processors, integrated Trusted Platform Modules and the Windows 10 operating system, the I-Series 3 Slate delivers the dependability businesses need.

Support for Linux.
For added flexibility, the I-Series 3 Slate offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Get peace of mind with EloCare.
- Advance Unit Replacement
- Extended Warranty
- Professional Services



Viktiga egenskaper

Elo Touch Solutions E983895. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, Display type: TFT. Processor manufacturer: Intel. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 32 GB. Total storage capacity: 128 GB, Storage media: SSD. Graphics card manufacturer: Intel, Graphics card: UHD Graphics



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Display type	TFT
Response time	25 ms
Effective viewing area	344.2 x 193.5 mm
Aspect ratio	16:9
Touchscreen technology	Projected capacitive system
Display number of colours	16.2 million colours
Contrast ratio (typical)	1000:1
Display brightness	255 cd/m²
Viewing angle, vertical	170 °
Viewing angle, horizontal	170 °

Processor manufacturer	Intel

Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Number of memory slots	1
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz

Total storage capacity	128 GB
Storage media	SSD
NVMe	Yes

Graphics card manufacturer	Intel
Graphics card	UHD Graphics

Certification	UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA

Built-in speaker(s)	Yes
Number of speakers	2

Ethernet LAN	Yes
Bluetooth	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DC-in jack	Yes

Product colour	Grey

Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 10

AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power supply	65 W
Power consumption (typical)	30 W

Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C

VESA mounting	Yes
Panel mounting interface	75 x 75 mm

Width	362.8 mm
Depth	20.2 mm
Height	223.4 mm
Weight	1600 g

Quantity per pack	1 pc(s)
Package width	460 mm
Package depth	178 mm
Package height	321 mm
Package weight	4000 g

Cables included	Power
Quick start guide	Yes
Power adapter included	Yes
