Produktbeskrivning

Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.

Expand possibilities with AI processing.
Experience unparalleled AI processing power with the I-Series 3, featuring optional Hailo Neural Processing Engine capable of executing 50 TOPS (trillion operations per second). Available with i7 processor models.

Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between
Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.



Viktiga egenskaper

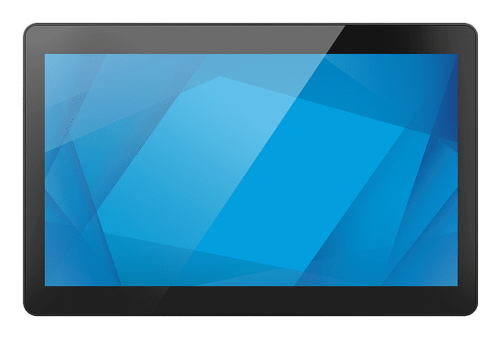

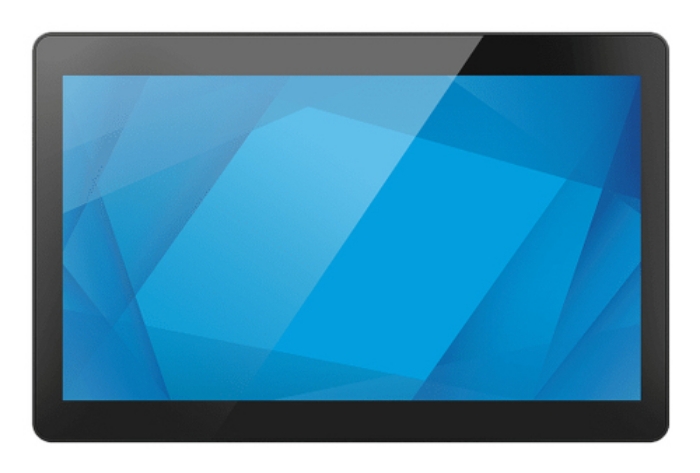

Elo Touch Solutions I-Series E430821. Product type: All-in-One tablet PC. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Panel type: TFT-LCD. Processor family: Intel® Celeron®, Processor frequency: 1.1 GHz. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Product colour: Black



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	350 cd/m²
Viewable size, horizontal	344.2 mm
Viewable size, vertical	193.5 mm
Response time	25 ms
Panel type	TFT-LCD
Contrast ratio (typical)	1000:1
Display number of colours	16.2 million colours

Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	7305L
Processor cores	5
Processor threads	5
Processor boost frequency	1.1 GHz
Processor frequency	1.1 GHz
Performance cores	1
Efficient cores	4
Performance-core Max Turbo Frequency	1.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Thermal Design Power (TDP)	15 W
Processor base power	15 W

Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Memory layout (slots x size)	1 x 8 GB

Total storage capacity	256 GB
Storage media	SSD
Number of storage drives installed	1
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No

Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Built-in camera	No

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	0
Headphone outputs	1
Micro-USB ports quantity	4

Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Panel mounting interface	75 x 75 mm

Product type	All-in-One tablet PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Intel® Active Management Technology (Intel® AMT)	No

AC adapter power	180 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	24 V
Power consumption (off)	0.5 W
Power consumption (typical)	33 W

Width (without stand)	384.1 mm
Depth (without stand)	37.2 mm
Height (without stand)	247.7 mm
Weight (without stand)	3600 g
Package width	481 mm
Package depth	345 mm
Package height	197 mm
Package weight	6520 g

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Certification	Canada cUL, IC United States UL, FCC Germany TUV Europe CE Australia RCM United Kingdom UKCA International CB Argentina S-Mark Brazil ANATEL Japan VCCI, MIC China CCC, SRRC Mexico NOM RoHS CoC New Zealan

Sustainability certificates	ENERGY STAR

AC adapter included	Yes
Quick start guide	Yes
Cables included	Power

Mean time between failures (MTBF)	50000 h
Data transfer rate	1000 Mbit/s
Battery type	CR2450
Battery technology	Lithium
Headphone connectivity	3.5 mm
Warranty period	3 year(s)
Power consumption (sleep)	5 W
