Produktbeskrivning

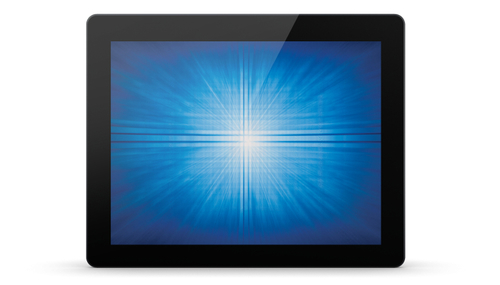

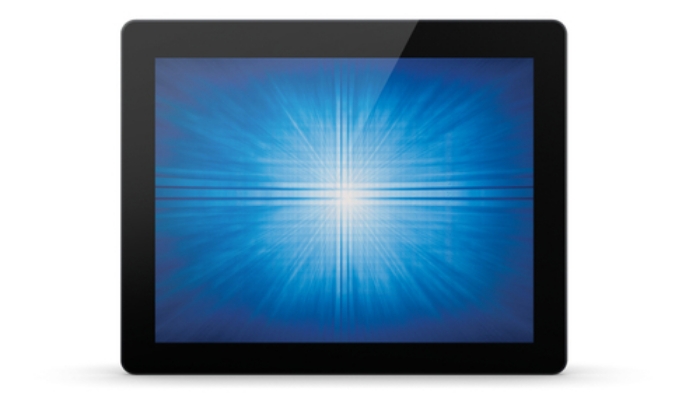

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.



Viktiga egenskaper

Elo Touch Solutions 1590L. Display diagonal: 38.1 cm (15"), Display technology: LCD, Display resolution: 1024 x 768 pixels, Display brightness: 240 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	15 "
Display technology	LCD
LED backlight	Yes
Display resolution	1024 x 768 pixels
Display brightness	240 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Response time	16 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Viewing angle, vertical	150 °
Display number of colours	16.2 million colours
Vertical scan range	50 - 75 Hz
Native refresh rate	60 Hz
Horizontal scan range	30 - 60 kHz

HDMI ports quantity	1
DisplayPorts quantity	1

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	12.5 W
Power consumption (off)	0.5 W

Package width	434 mm
Package depth	175 mm
Package height	375 mm
Package weight	4700 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Harmonized System (HS) code	85285210

Wall mountable	Yes

Full HD	No
Compliance certificates	RoHS

Height (without stand)	284.9 mm
Depth (without stand)	35.6 mm
Display viewable area (HxV)	304.1 x 228.1 mm
Digital vertical frequency	50 - 75 Hz
Digital horizontal frequency	30 - 60 kHz
Weight (without stand)	2900 g
Aspect ratio	4:3
Power supply type	DC
Backlight type	LED
Built-in camera	No
