Produktbeskrivning

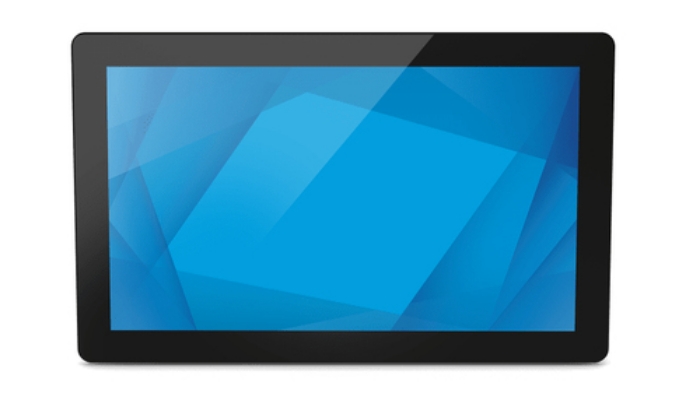

Elo 1594L Open Frame Touchscreen Display
The Elo 1594L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Design Your Solution with Elo
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru GlassEnabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings.
Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and
environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.



Viktiga egenskaper

Elo Touch Solutions E131375. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD. Product colour: Black, Mean time between failures (MTBF): 50000 h. Interface: USB 2.0. Power source type: DC, Power: 13.23 W, AC adapter output voltage: 12 V. Width: 394.7 mm, Depth: 43.4 mm, Height: 242 mm



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
HD type	Full HD
Display type	TFT-LCD
Display brightness	315 cd/m²
Touchscreen	Yes
Touchscreen type	Capacitive
Response time	25 ms
Effective viewing area	344.16 x 193.59 mm
Native aspect ratio	16:9
Number of colours	16.78 million colours
Contrast ratio (typical)	800:1
LED backlight	Yes
Viewing angle, vertical	178 °
Native refresh rate	60 Hz
Viewing angle, horizontal	178 °

Product colour	Black
Mean time between failures (MTBF)	50000 h

Interface	USB 2.0

Power source type	DC
AC adapter output voltage	12 V
Power	13.23 W

Depth	43.4 mm
Height	242 mm
Width	394.7 mm
Weight	3020 g

Package height	331 mm
Package depth	175 mm
Package width	470 mm
Package weight	4620 g

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 95 %
