Produktbeskrivning

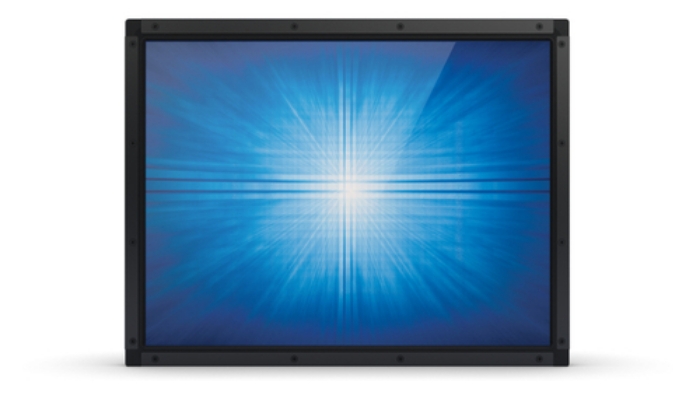

The Elo 1598L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1598L includes a 500 nit high bright display and extended temperature range to 50 C (122° F) making it ideal for factory automation and other instrumentation control applications. With an optional 24 VDC converter kit included with the unit, manufacturers can leverage a common 24V power supply in their design with a single AC connection. This compact touch display is designed for touch with proven Elo expertise and provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. The 1598L also offers mounting features that enable the power converter to be mounted on the back of the monitor for ease of integration.
Touch ready.The 1598L is available with Elo's industry-leading AccuTouch® five-wire resistive with a standard bezel and single-touch technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance.
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Viktiga egenskaper
Elo Touch Solutions 1598L. Display diagonal: 38.1 cm (15"), Display technology: LCD/TFT, Display resolution: 1024 x 768 pixels, Display brightness: 400 cd/m², Touchscreen. Product colour: Black
Teknisk specifikation
Display
| Display diagonal | 15 " |
|---|
| Display technology | LCD/TFT |
|---|
| LED backlight | Yes |
|---|
| Display resolution | 1024 x 768 pixels |
|---|
| Display brightness | 400 cd/m² |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen technology | Resistive |
|---|
| Response time | 35 ms |
|---|
| Contrast ratio (typical) | 1500:1 |
|---|
| Viewing angle, horizontal | 170 ° |
|---|
| Viewing angle, vertical | 170 ° |
|---|
| Display number of colours | 16.2 million colours |
|---|
| Supported graphics resolutions | 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA) |
|---|
Ports & interfaces
| HDMI ports quantity | 1 |
|---|
| DisplayPorts quantity | 1 |
|---|
Design
| Product colour | Black |
|---|
| Screen shape | Flat |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 75 x 100 mm |
|---|
Performance
| On Screen Display (OSD) languages | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN |
|---|
| Number of OSD languages | 8 |
|---|
| Mean time between failures (MTBF) | 50000 h |
|---|
Power
| Power consumption (typical) | 14.1 W |
|---|
| Power consumption (standby) | 1.5 W |
|---|
| Power consumption (off) | 0.5 W |
|---|
| AC input voltage | 100-240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
Packaging data
| Package width | 434 mm |
|---|
| Package depth | 175 mm |
|---|
| Package height | 375 mm |
|---|
| Package weight | 4700 g |
|---|
Packaging content
| Remote control included | Yes |
|---|
| Cables included | HDMI,USB,VGA |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
| Operating altitude | 0 - 3658 m |
|---|
| Non-operating altitude | 3658 - 12192 m |
|---|
Certificates
| Certification | RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC |
|---|
Logistics data
| Harmonized System (HS) code | 85285210 |
|---|
Features
| Wall mountable | Yes |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Other features
| Maximum refresh rate | 60 Hz |
|---|
| Depth (without stand) | 41.9 mm |
|---|
| Display viewable area (HxV) | 304.1 x 228.1 mm |
|---|
| Quick start guide | Yes |
|---|
| Built-in microphone | No |
|---|
| Height (without stand) | 264.4 mm |
|---|
| Weight (without stand) | 2900 g |
|---|
| Digital horizontal frequency | 30 - 60 kHz |
|---|
| Power supply type | AC/DC |
|---|
| Aspect ratio | 4:3 |
|---|
| Digital vertical frequency | 50 - 75 Hz |
|---|
| Built-in camera | No |
|---|
