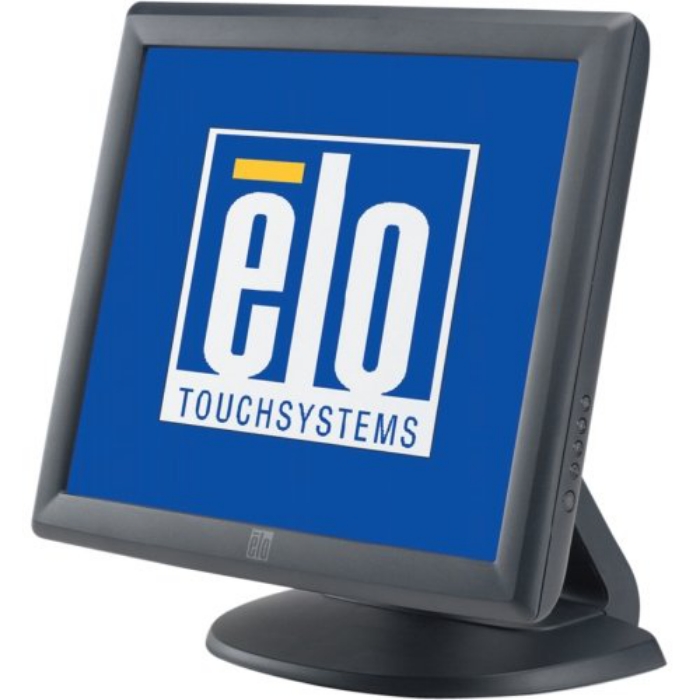

Produktbeskrivning

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

AccuTouch Five-Wire Resistive Touch Technology
Elo developed AccuTouch technology with the harshest environments in mind, so it's no wonder that it excels in reliability, durability, and expected product life. Impervious to environmental conditions such as liquid spills and splashes and washdown, these screens are the most contamination-resistant available. They deliver drift-free operation for a lifetime of 35 million finger touches.



Viktiga egenskaper

Elo Touch Solutions 1715L. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display brightness: 200 cd/m². Product colour: Grey, Mean time between failures (MTBF): 50000 h. AC adapter output voltage: 12 V



Teknisk specifikation

Display diagonal	17 "
Display resolution	1280 x 1024 pixels
Display brightness	200 cd/m²
Touchscreen	Yes
Touchscreen type	Kiosk
Response time	5 ms
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °
Contrast ratio (typical)	1000:1

Product colour	Grey
Mean time between failures (MTBF)	50000 h

AC adapter output voltage	12 V

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %
