Produktbeskrivning

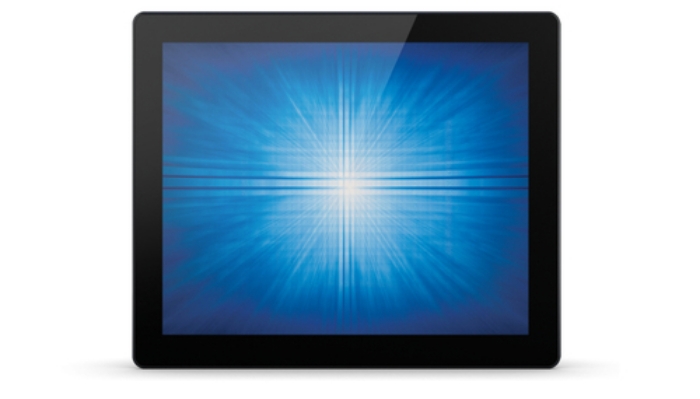

The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.
The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.



Viktiga egenskaper

Elo Touch Solutions 1790L. Display diagonal: 43.2 cm (17"), Display technology: LCD/TFT, Display resolution: 1280 x 1024 pixels, Display brightness: 200 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	17 "
Display technology	LCD/TFT
LED backlight	Yes
Display resolution	1280 x 1024 pixels
Display brightness	200 cd/m²
Touchscreen	Yes
Response time	5 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °
Display number of colours	16.78 million colours
Horizontal scan range	30 - 82 kHz
Native refresh rate	60 Hz
Vertical scan range	50 - 75 Hz

HDMI ports quantity	1
DisplayPorts quantity	1

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	17.8 W
Power consumption (off)	0.5 W

Package width	476 mm
Package depth	183 mm
Package height	418 mm
Package weight	5600 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Harmonized System (HS) code	85285210

Wall mountable	Yes

Full HD	No
Compliance certificates	RoHS

Display viewable area (HxV)	337.92 x 270.336 mm
Weight (without stand)	3600 g
Digital horizontal frequency	30 - 82 kHz
Digital vertical frequency	50 - 75 Hz
Power supply type	DC
Backlight type	LED
Aspect ratio	5:4
Built-in camera	No
