Produktbeskrivning
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You.
One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Viktiga egenskaper

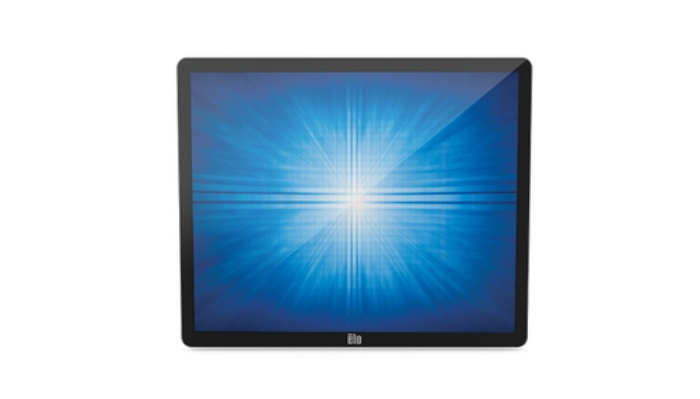

Elo Touch Solutions 1902L. Display diagonal: 48.3 cm (19"), Display technology: LED, Display resolution: 1280 x 1024 pixels, Display brightness: 225 cd/m², HD type: HD, Touchscreen. Product colour: Black
Teknisk specifikation
Display
| Display diagonal | 19 " |
|---|
| Display technology | LED |
|---|
| Display resolution | 1280 x 1024 pixels |
|---|
| Display brightness | 225 cd/m² |
|---|
| HD type | HD |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen technology | Projected capacitive system |
|---|
| Number of simultaneous touchpoints | 10 |
|---|
| Native aspect ratio | 5:4 |
|---|
| Response time | 14 ms |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Viewing angle, horizontal | 178 ° |
|---|
| Viewing angle, vertical | 178 ° |
|---|
| Display number of colours | 16.78 million colours |
|---|
| Vertical scan range | 50 - 75 Hz |
|---|
| Supported graphics resolutions | 640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA) |
|---|
| Horizontal scan range | 30 - 82 kHz |
|---|
Ports & interfaces
| HDMI ports quantity | 1 |
|---|
| DisplayPorts quantity | 0 |
|---|
Design
| Product colour | Black |
|---|
| Screen shape | Flat |
|---|
Performance
| International Protection (IP) code | IPX1 |
|---|
| Mean time between failures (MTBF) | 50000 h |
|---|
Power
| Power consumption (typical) | 18 W |
|---|
| Power consumption (standby) | 0.8 W |
|---|
| Power consumption (off) | 0.4 W |
|---|
| Energy efficiency class (SDR) | E |
|---|
| Energy consumption (SDR) per 1000 hours | 11 kWh |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Energy efficiency scale | A to G |
|---|
Packaging data
| Package width | 482 mm |
|---|
| Package depth | 190 mm |
|---|
| Package height | 527 mm |
|---|
| Package weight | 6500 g |
|---|
Packaging content
| Cables included | Audio (3.5mm),HDMI,USB,VGA |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
Certificates
| Certification | CUL, IC, CCC, CE, KCC, BSMI, FCC, UL, VCCI, CB, RCM, EAC, CoC, BIS |
|---|
Logistics data
| Harmonized System (HS) code | 85285210 |
|---|
Features
| Wall mountable | Yes |
|---|
Other features
| Micro-USB ports quantity | 4 |
|---|
| Maximum refresh rate | 70 Hz |
|---|
| Depth (without stand) | 41.6 mm |
|---|
| Built-in microphone | No |
|---|
| Quick start guide | Yes |
|---|
| Height (without stand) | 429.6 mm |
|---|
| Display viewable area (HxV) | 374.78 x 299.83 mm |
|---|
| Power supply type | AC/DC |
|---|
| Weight (without stand) | 4300 g |
|---|
| Built-in camera | No |
|---|
