Produktbeskrivning

DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 -
Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.



Viktiga egenskaper

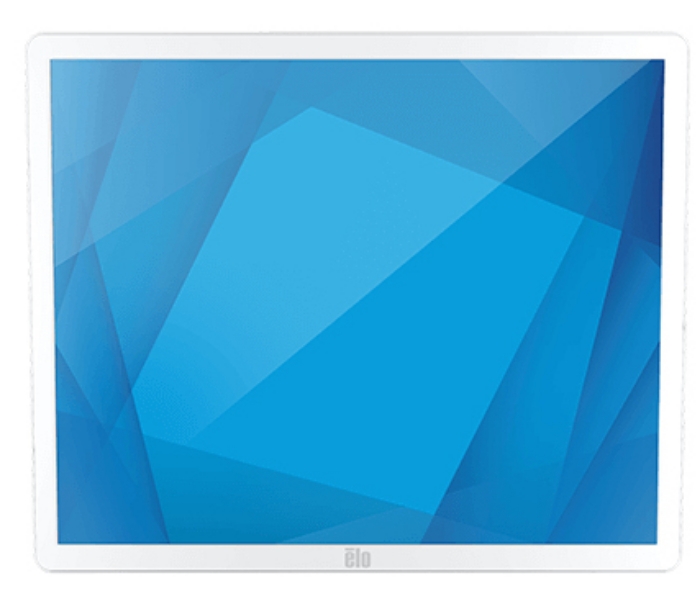

Elo Touch Solutions 1903LM. Product design: Interactive flat panel. Display diagonal: 48.3 cm (19"), Display technology: LCD, Display resolution: 1280 x 1024 pixels, Display brightness: 225 cd/m², HD type: SVGA, Touchscreen. Product colour: White



Teknisk specifikation

Display diagonal	19 "
Display technology	LCD
Panel type	TFT-LCD
LED backlight	Yes
Display resolution	1280 x 1024 pixels
Display brightness	225 cd/m²
HD type	SVGA
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Multi-touch	Yes
Native aspect ratio	5:4
Response time	14 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Active display area (W x H)	374.78 x 299.83 mm
Display diagonal (metric)	48.26 cm
Vertical scan range	50 - 75 Hz
Horizontal scan range	30 - 82 kHz

HDMI ports quantity	1
VGA (D-Sub) input ports	1
USB port	Yes
USB ports quantity	1
USB 2.0 Type-B ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio (L/R) out	1
DC-in jack	Yes

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	2 W

Product design	Interactive flat panel
Product colour	White
Placement supported	Indoor
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Anti-glare screen	Yes

Purpose	Healthcare
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
International Protection (IP) code	IP54
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	14.53 W
Power consumption (standby)	0.79 W
Input voltage	12 V
Power consumption (off)	0.37 W
Power consumption (max)	16.36 W
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	14 kWh
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Display width	429.6 mm
Display depth	41.6 mm
Display height	354.6 mm
Display weight	4300 g
Width (with stand)	429.6 mm
Depth (with stand)	193.4 mm
Height (with stand)	397.65 mm
Weight (with stand)	6300 g

Package width	527 mm
Package depth	190 mm
Package height	482 mm
Package weight	6820 g

Stand included	No
Cables included	HDMI,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Waste Electrical and Electronic Equipment (WEEE) compliance	Yes

Wall mountable	Yes

Compliance certificates	RoHS,WEEE,REACH,China RoHS,EAC,VCCI
