Produktbeskrivning

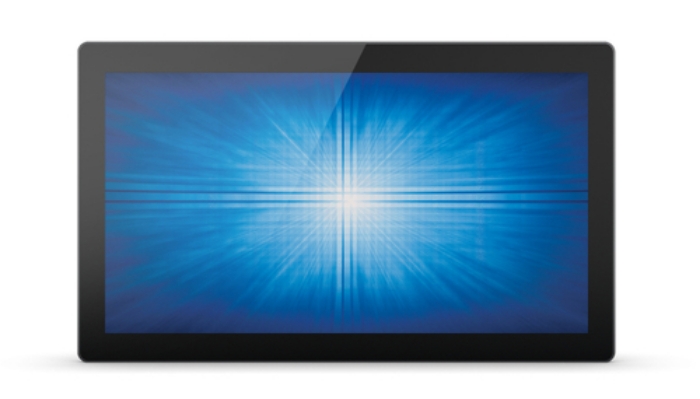

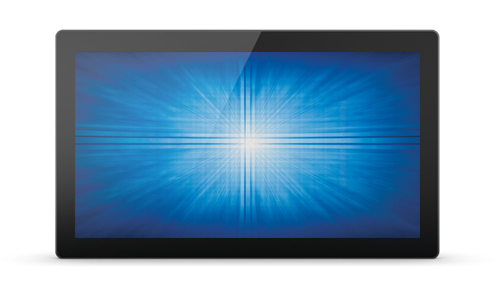

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces



Viktiga egenskaper

Elo Touch Solutions 2094L. Display diagonal: 49.5 cm (19.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	19.5 "
Display technology	LED
Display resolution	1920 x 1080 pixels
Display brightness	225 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Response time	20 ms
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1366 x 768,1440 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Horizontal scan range	30 - 82 kHz

HDMI ports quantity	1
DisplayPorts quantity	1

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Number of OSD languages	8
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	17.6 W
Power consumption (standby)	1.5 W
Power consumption (off)	0.5 W
AC input voltage	230 V
AC input frequency	50 Hz

Width (with stand)	476 mm
Depth (with stand)	280.1 mm
Height (with stand)	43.4 mm

Package width	575 mm
Package depth	185 mm
Package height	376 mm
Package weight	6400 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %
Operating altitude	0 - 3.048 m

Harmonized System (HS) code	85285210

Wall mountable	Yes

Dimensions (W x D x H) with stand	476 x 280.1 x 43.4 mm
Height (without stand)	285 mm
Display viewable area (HxV)	434.88 x 238.68 mm
Depth (without stand)	40.5 mm
Built-in microphone	No
Weight (without stand)	4700 g
Digital horizontal frequency	30 - 82 kHz
Digital vertical frequency	50 - 75 Hz
Power supply type	DC
Aspect ratio	16:9
Built-in camera	No
