Produktbeskrivning

Designed intentionally for demanding environments.
Elo has designed and engineered the I-Series Steel to help ensure optimal versatility for seamless integration into almost any environment.

Fully integrated power-over-ethernet (POE).
With POE, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and an ethernet cable and you are ready to power on.

Integrated VESA for ease of mounting.
The industrial-grade I-Series Steel can be mounted in landscape and portrait, providing optimal flexibility for mounting to a wall, pole, arm or any third party compatible VESA mount.



Viktiga egenskaper

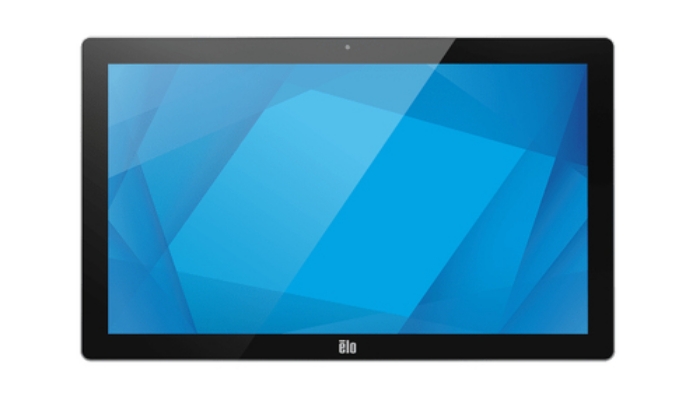

Elo Touch Solutions I-Series 5 Steel. Product design: Digital signage flat panel. Display diagonal: 54.6 cm (21.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: Stainless steel



Teknisk specifikation

Display diagonal	21.5 "
Display technology	LED
Panel type	TFT-LCD
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Multi-touch	Yes
Number of simultaneous touchpoints	10
Response time	14 ms
Contrast ratio (typical)	100:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Active display area (W x H)	476 x 268 mm
Number of displays	1
Native refresh rate	60 Hz

USB port	Yes
USB ports quantity	2
USB connector type	USB Type-A,USB Type-C
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
DC-in jack	Yes

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	1.5 W

Product design	Digital signage flat panel
Product colour	Stainless steel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 100 mm

Purpose	Commercial
Number of microphones	2
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	15.2 W
Power consumption (sleep)	2 W
Power consumption (off)	0.2 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Built-in processor	Yes
Processor manufacturer	Qualcomm
Processor cores	8
Internal memory	8 GB
Internal storage capacity	64 GB
Operating system installed	Android
Operating system version	Android 14

Display width	533 mm
Display depth	324 mm
Display height	386.8 mm
Display weight	5200 g

Package width	613 mm
Package depth	173 mm
Package height	415 mm
Package weight	8200 g

Cables included	Power

Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 50 °C
Storage relative humidity (H-H)	5 - 95 %

Certification	UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)

Bluetooth version	5.2
Aspect ratio	16:9
Bluetooth	Yes
Megapixel (approx.)	8 MP
