Produktbeskrivning

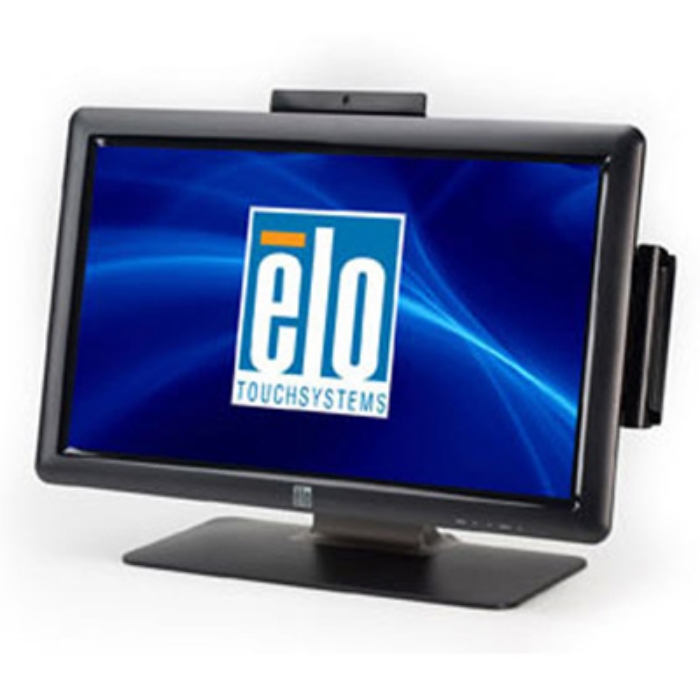

The 2201L offers a flexible, space-saving design, HD wide-aspect ratio 22-inch LCD touchmonitor with Windows 7 multi-touch interactivity. Well-suited to meet durability as well as aesthetic requirements for front-of-store, back office, kiosk and even out-of-store applications, the Elo TouchSystems 2201L offers real versatility for a variety of retail and hospitality interactive solutions including:

- Promotion of cross-channel, online sales in the store (shoppers purchase items online in the store for home delivery or shop for sold out or unavailable merchandise in additional store locations)
- Hostess stations that require large screens to view restaurant layouts / seating charts
- Back office solutions integrating labor management and inventory analysis
- Customer assist and self-service solutions (theaters, hotels, auto dealerships)
- Shelf-level / countertop interactive digital signage displays
- Interactive HD video to promote lifestyle marketing in larger retail / lifestyle stores

Available with two surface acoustic wave touchscreen technologies, both with pure-glass surfaces that deliver stable ”drift-free” operation, outstanding image clarity, resolution, and high light transmission: IntelliTouch Plus multi-touch for an accurate two-touch response and vivid images; iTouch for a seamless, glass-to-edge zero-bezel design. And, instead of the high energy use CCFL backlights of other touchmonitors, the 2201L is set apart by using state-of-the-art LED technology to reduce energy usage.

Wide-aspect displays like the Elo TouchSystems 2201L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in corporate environments for publishing and dual window applications, and are popular in public venue environments due to a high-definition cinematic-like experience.



Viktiga egenskaper

Elo Touch Solutions 2201L. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD. Product colour: Black, Mean time between failures (MTBF): 50000 h. AC adapter output voltage: 12 V. Package width: 520 mm, Package depth: 280 mm, Package height: 690 mm. Certification: C-Tick, cUL, IC, CCC, CE, VCCI, KCC, e-Standby, NOM, BSMI, UL, FCC, CB, WEEE, IMERC



Teknisk specifikation

Display diagonal	21.5 "
Display resolution	1920 x 1080 pixels
HD type	Full HD
Display brightness	225 cd/m²
Touchscreen	Yes
Response time	14 ms
LED backlight	Yes
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °

Product colour	Black
Mean time between failures (MTBF)	50000 h

AC adapter output voltage	12 V

Package height	690 mm
Package width	520 mm
Package depth	280 mm
Package weight	12500 g

Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %

Compliance certificates	RoHS

Certification	C-Tick, cUL, IC, CCC, CE, VCCI, KCC, e-Standby, NOM, BSMI, UL, FCC, CB, WEEE, IMERC
