Produktbeskrivning

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.



Viktiga egenskaper

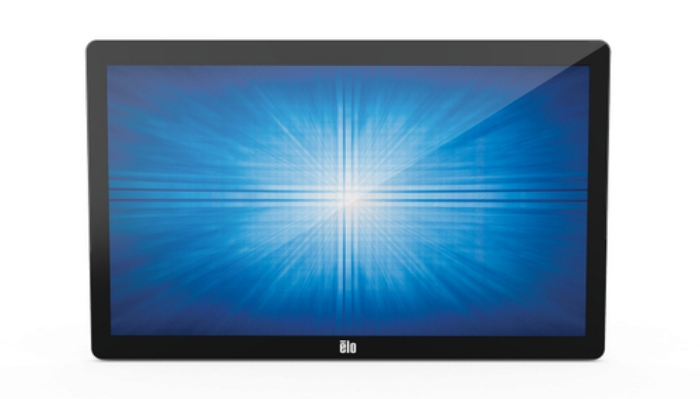

Elo Touch Solutions 2202L. Display diagonal: 54.6 cm (21.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	21.5 "
Display technology	LCD
LED backlight	Yes
Panel type	TFT
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	25 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Display diagonal (metric)	54.61 cm
Supported graphics resolutions	800 x 500,640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+)

HDMI ports quantity	1

Built-in speaker(s)	Yes
RMS rated power	4 W

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,RUS
Number of OSD languages	10
International Protection (IP) code	IPX1
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	22.5 W
Power consumption (standby)	0.8 W
Power consumption (off)	0.35 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Package width	633 mm
Package depth	196 mm
Package height	450 mm
Package weight	7200 g

Stand included	No
Cables included	AC,Audio (3.5mm),HDMI,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %
Operating altitude	0 - 3.048 m
Non-operating altitude	0 - 12.192 m

Certification	Canada (CUL, IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC, UL), Japan VCCI, International CB, Australia RCM, Russia EAC, Mexico CoC, India BIS

Harmonized System (HS) code	85285210

Wall mountable	Yes

Micro-USB ports quantity	4
Maximum refresh rate	60 Hz
Quick start guide	Yes
AC adapter included	Yes
Height (without stand)	326.9 mm
Depth (without stand)	42.7 mm
Display viewable area (HxV)	467.06 x 267.78 mm
Digital vertical frequency	50 - 75 Hz
Digital horizontal frequency	30 - 82 kHz
Headphone outputs	1
Weight (without stand)	5200 g
Power supply type	AC/DC
Built-in camera	No
