DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

DICOM 14 -Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.



Viktiga egenskaper

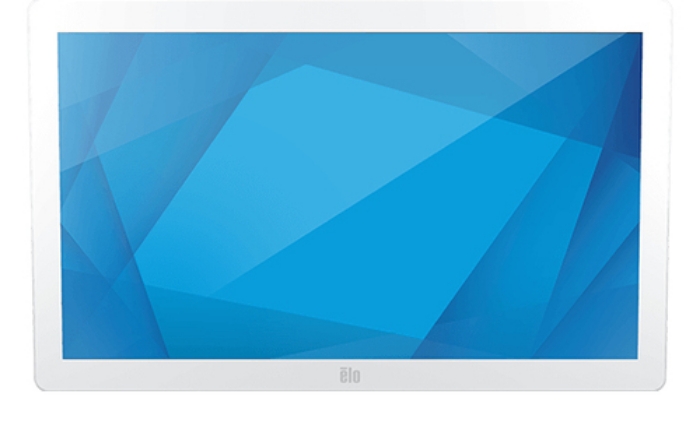

Elo Touch Solutions 2203LM. Display diagonal: 54.6 cm (21.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 225 cd/m², HD type: Full HD, Touchscreen. Product colour: White



Teknisk specifikation

Display diagonal	21.5 "
Display technology	LCD
Panel type	TFT
Display resolution	1920 x 1080 pixels
Display brightness	225 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	14 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Display diagonal (metric)	54.61 cm
Supported graphics resolutions	640 x 400,640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)

HDMI ports quantity	1

Built-in speaker(s)	Yes
RMS rated power	2 W

Product colour	White
Screen shape	Flat
VESA mounting	Yes
Anti-glare screen	Yes

On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
International Protection (IP) code	IP54
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	14.4 W
Power consumption (standby)	0.78 W
Power consumption (off)	0.36 W
Power consumption (max)	17 W
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	17 kWh
Energy efficiency scale	A to G

Display width	526.9 mm
Display depth	14.2 mm
Display height	326.9 mm
Display weight	4800 g

Package weight	7450 g

Stand included	No
Cables included	HDMI,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Wall mountable	Yes

Compliance certificates	RoHS

Maximum refresh rate	70 Hz
LED indicators	Power
Viewable size, vertical	267.79 mm
Display viewable area (HxV)	476.06 x 267.79 mm
Viewable size, horizontal	476.06 mm
Weight (without stand)	4750 g
Digital horizontal frequency	30 - 82 kHz
Digital vertical frequency	50 - 75 Hz
Built-in camera	No
