Produktbeskrivning

Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.

Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Get peace of mind
with EloCare



Viktiga egenskaper

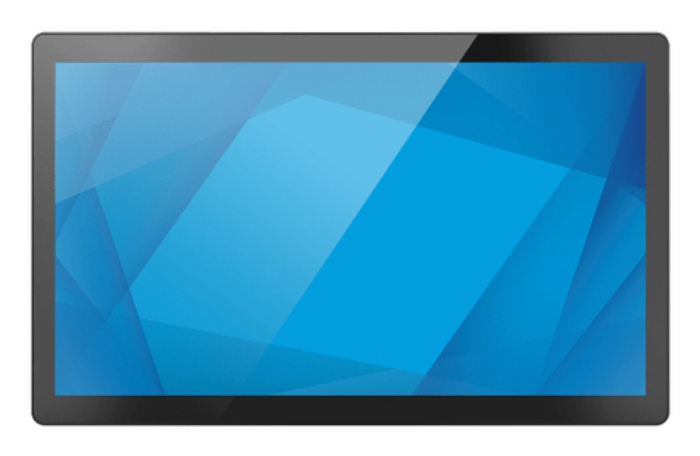

Elo Touch Solutions I-Series 3.0. Product type: All-in-One PC. Display diagonal: 60.5 cm (23.8"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Screen shape: Flat, Panel type: TFT. Processor family: Intel® Core™ i5, Processor frequency: 4.4 GHz. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 256 GB, Storage media: SSD. Operating system installed: Windows 11 IoT Enterprise. Product colour: Black



Teknisk specifikation

Display diagonal	23.8 "
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Response time	16 ms
Panel type	TFT
Screen shape	Flat
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °

Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor model	i5-1245UL
Processor cores	10
Processor threads	5
Processor boost frequency	4.4 GHz
Processor frequency	4.4 GHz
Performance cores	2
Efficient cores	8
Performance-core Max Turbo Frequency	4.4 GHz
Efficient-core Max Turbo Frequency	2.5 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	28 W
Processor base power	15 W

Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Memory layout (slots x size)	1 x 16 GB
Memory form factor	DIMM/SO-DIMM

Total storage capacity	256 GB
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	M.2
SSD form factor	M.2
Optical drive type	No

Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Built-in camera	No

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	0
Headphone outputs	1

Product colour	Black
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm

Product type	All-in-One PC
Market positioning	Business
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 11 IoT Enterprise
Operating system architecture	64-bit

AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	24 V
Power consumption (standby)	5 W
Power consumption (off)	0.5 W

Width (without stand)	571.2 mm
Depth (without stand)	39 mm
Height (without stand)	352 mm
Weight (without stand)	7100 g
Package width	697 mm
Package depth	529 mm
Package height	188 mm
Package weight	9700 g

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Compliance certificates	CB,CCC,Federal Communications Commission (FCC),Norma Oficial Mexicana (NOM),RCM,RoHS,State Radio Regulation of China (SRRC),UKCA,VCCI,CE,Industry Canada (IC)

Sustainability certificates	ENERGY STAR

Quick start guide	Yes
Power cord included	Yes

Mean time between failures (MTBF)	50000 h
