Produktbeskrivning

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.

One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.



Viktiga egenskaper

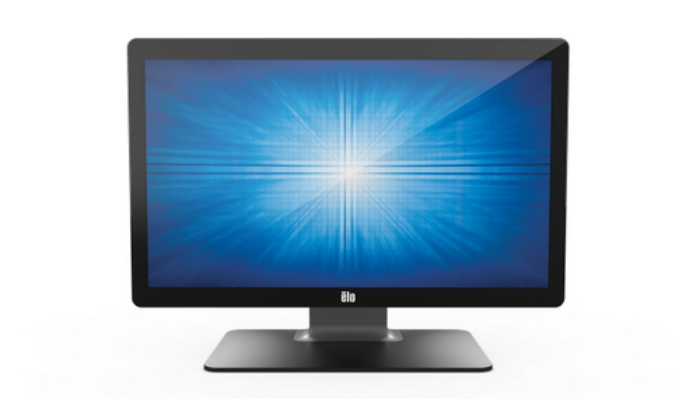

Elo Touch Solutions 2402L. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 240 cd/m², Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	23.8 "
Display technology	LCD
LED backlight	Yes
Display resolution	1920 x 1080 pixels
Display brightness	240 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Response time	15 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Vertical scan range	50 - 75 Hz
Horizontal scan range	30 - 82 kHz

HDMI ports quantity	1

Built-in speaker(s)	Yes
RMS rated power	4 W

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,RUS
International Protection (IP) code	IPX1

Power consumption (typical)	25.5 W
Power consumption (standby)	0.33 W
Power consumption (off)	0.27 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width (with stand)	574.6 mm
Depth (with stand)	233 mm
Height (with stand)	432.9 mm
Weight (with stand)	8700 g

Package width	680 mm
Package depth	318 mm
Package height	526 mm
Package weight	12000 g

Cables included	AC,Audio (3.5mm),HDMI,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Harmonized System (HS) code	85285210

Micro-USB ports quantity	4
Maximum refresh rate	60 Hz
Quick start guide	Yes
Dimensions (W x D x H) with stand	574.6 x 233 x 432.9 mm
Display viewable area (HxV)	527.04 x 296.46 mm
Headphone outputs	1
Power supply type	AC/DC
Aspect ratio	16:9
Voltage tolerance	5 %
Weight (without stand)	5420 g
Built-in camera	No
