Produktbeskrivning

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.



Viktiga egenskaper

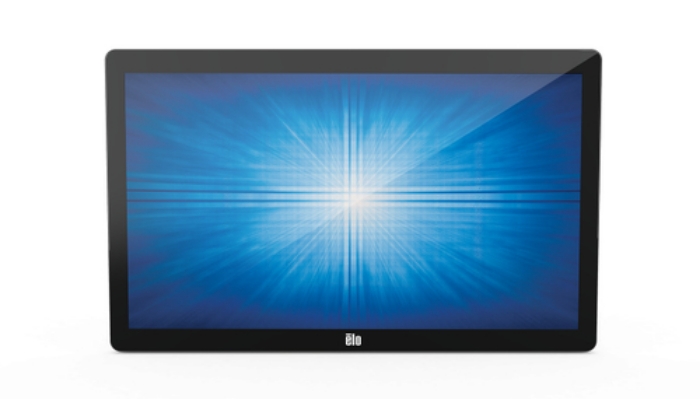

Elo Touch Solutions 2402L. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	23.8 "
Display technology	LCD
LED backlight	Yes
Panel type	TFT
Display resolution	1920 x 1080 pixels
Display brightness	250 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	15 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Supported graphics resolutions	640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)

HDMI ports quantity	1

Built-in speaker(s)	Yes
RMS rated power	4 W

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm

Number of OSD languages	10
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,RUS
International Protection (IP) code	IPX1
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	25.5 W
Power consumption (standby)	0.33 W
Power consumption (off)	0.27 W
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	17 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Package width	680 mm
Package depth	169 mm
Package height	460 mm
Package weight	7540 g

Stand included	No
Cables included	AC,Audio (3.5mm),HDMI,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %
Operating altitude	0 - 3.048 m
Non-operating altitude	0 - 12.192 m

Certification	Canada (CUL,IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC,UL), Japan VCC, Internationa lCB, Australia RCM, Russia EAC, Mexico CoC

Harmonized System (HS) code	85285210

Micro-USB ports quantity	4
Maximum refresh rate	60 Hz
Display viewable area (HxV)	527.04 x 296.46 mm
AC adapter included	Yes
Height (without stand)	337.2 mm
Depth (without stand)	42.8 mm
Quick start guide	Yes
Digital horizontal frequency	30 - 82 kHz
Weight (without stand)	5420 g
Digital vertical frequency	50 - 75 Hz
Power supply type	AC/DC
Headphone outputs	1
Built-in camera	No
