Produktbeskrivning

Go Brighter with Elo Open Frames
Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.

Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.



Viktiga egenskaper

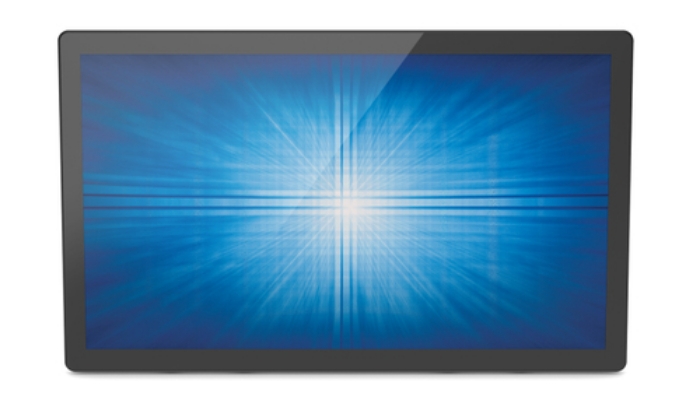

Elo Touch Solutions 2495L. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 540 cd/m², HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	23.8 "
Display technology	LCD
LED backlight	Yes
Panel type	TFT
Display resolution	1920 x 1080 pixels
Display brightness	540 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	14 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)

HDMI ports quantity	1
HDMI version	1.3a
DisplayPorts quantity	1
DisplayPort version	1.1a
Ethernet LAN (RJ-45) ports	1

Product colour	Black
Screen shape	Flat
VESA mounting	Yes

On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE
Mean time between failures (MTBF)	50000 h

Power consumption (standby)	0.71 W
Power consumption (off)	0.2 W
Power consumption (max)	32.95 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	39 kWh
Energy efficiency scale	A to G

Package width	692 mm
Package depth	190 mm
Package height	452 mm
Package weight	7570 g

Cables included	HDMI,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Wall mountable	Yes

Compliance certificates	RoHS

Maximum refresh rate	60 Hz
Depth (without stand)	37 mm
Viewable size, vertical	296.46 mm
Height (without stand)	341.1 mm
Viewable size, horizontal	527.04 mm
Display viewable area (HxV)	527.04 x 296.46 mm
Digital vertical frequency	50 - 75 Hz
Weight (without stand)	5650 g
Digital horizontal frequency	30 - 82 kHz
Power supply type	DC
Backlight type	LED
Built-in camera	No
