Produktbeskrivning

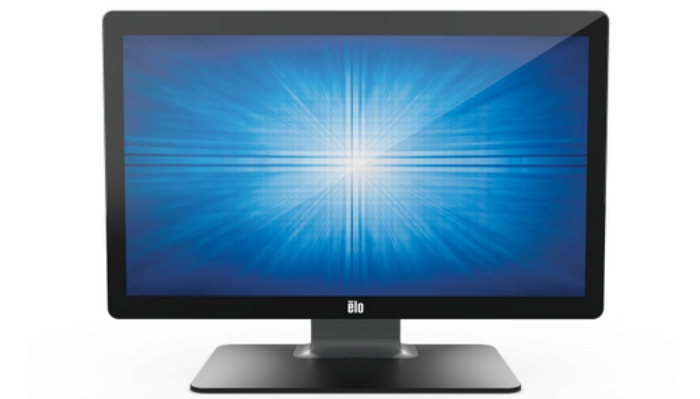

The Elo 2702L 27-inch touchscreen monitor delivers a professional-grade interactive solution with Elo’s industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.

Designed for commercial use, the new Elo touchscreen monitor makes business operations easy delivering energy efficiency and versatile accessories. The 2702L accessories include MSR, barcode scanner, fingerprint reader, NFC, customer facing display, handles and privacy screens. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.



Viktiga egenskaper

Elo Touch Solutions 2702L. Display diagonal: 68.6 cm (27"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 300 cd/m², HD type: Full HD, Touchscreen. Product colour: Black, Silver



Teknisk specifikation

Display diagonal	27 "
Display technology	LCD
Panel type	TFT
Display resolution	1920 x 1080 pixels
Display brightness	300 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Capacitive
Number of simultaneous touchpoints	10
Response time	14 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Supported graphics resolutions	640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+)

HDMI ports quantity	1

Built-in speaker(s)	Yes
RMS rated power	4 W

Product colour	Black,Silver
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,RUS
Number of OSD languages	10
International Protection (IP) code	IPX1
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	28 W
Power consumption (standby)	0.45 W
Power consumption (off)	0.38 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width (with stand)	647.6 mm
Depth (with stand)	233 mm
Height (with stand)	450.9 mm
Weight (with stand)	10500 g

Package width	764 mm
Package depth	322 mm
Package height	560 mm
Package weight	14300 g

Cables included	AC,Audio (3.5mm),HDMI,USB,VGA

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Harmonized System (HS) code	85285210

Wall mountable	Yes

Full HD	Yes

Micro-USB ports quantity	4
Maximum refresh rate	60 Hz
Display viewable area (HxV)	597.88 x 336.31 mm
Dimensions (W x D x H) with stand	647.6 x 233 x 450.9 mm
Built-in microphone	No
AC adapter included	Yes
Quick start guide	Yes
Digital horizontal frequency	30 - 82 kHz
Headphone outputs	1
Aspect ratio	16:9
Digital vertical frequency	50 - 75 Hz
Weight (without stand)	7240 g
Built-in camera	No
