Produktbeskrivning

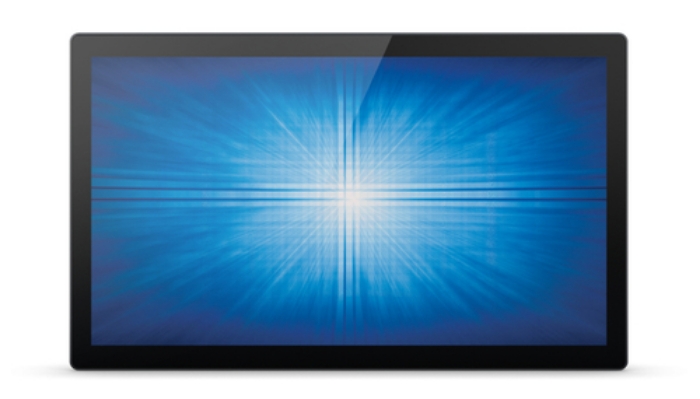

The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.
Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® Plus dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.



Viktiga egenskaper

Elo Touch Solutions 2794L. Display diagonal: 68.6 cm (27"), Display technology: LCD/TFT, Display resolution: 1920 x 1080 pixels, Display brightness: 270 cd/m², HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	27 "
Display technology	LCD/TFT
LED backlight	Yes
Display resolution	1920 x 1080 pixels
Display brightness	270 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Surface acoustic wave
Response time	12 ms
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Horizontal scan range	30 - 82 kHz
Vertical scan range	50 - 75 Hz

HDMI ports quantity	1
DisplayPorts quantity	1

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	200 x 100 mm

On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	27 W
Power consumption (off)	0.5 W

Package width	782 mm
Package depth	200 mm
Package height	530 mm
Package weight	10200 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Harmonized System (HS) code	85285210

Wall mountable	Yes

Full HD	Yes
Compliance certificates	RoHS

Maximum refresh rate	60 Hz
Display viewable area (HxV)	597.6 x 336.15 mm
Digital vertical frequency	50 - 75 Hz
Backlight type	LED
Aspect ratio	16:9
Power supply type	DC
Weight (without stand)	7300 g
Digital horizontal frequency	30 - 82 kHz
