Produktbeskrivning

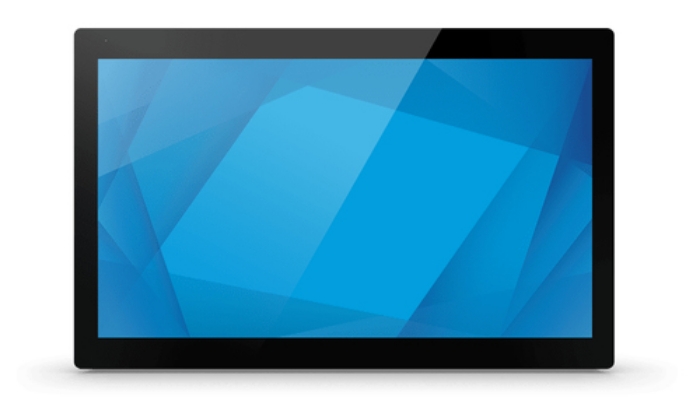

2799L 27" Outdoor Open Frame Outdoor kiosk ready.

Elo's 27-inch outdoor monitor, boasting 1500 NITs brightness and IK10 vandal-proof rating, ensures 24/7
performance, even in direct sunlight. Readable with polarized sunglasses, it thrives in extended temperatures.
Ideal for payment systems, signage, and charging stations, this brilliant, optically bonded weatherproof monitor features edge-to-edge glass for seamless outdoor enclosure integration.

27-inch weather­proof touchscreen that covers you from day to night.

Built to perform outdoors, Elo’s 2799 weatherproof monitor offers IP66 and NEMA 4X when integrated into an enclosure as well as IK10 impact protection. With extended operating temperatures from -20 to
60 degrees Celsius, the integrated outdoor digital signage display can withstand harsh physical and
thermal requirements.

Sunlight readable monitor.
To provide unmitigated performance from day to night, the ambient light sensor automatically adjusts the display’s brightness to optimize power consumption, extend the life of the display and enhance the viewing experience.

Outdoor kiosk solutions.
Elo’s 2799L outdoor monitor enables you to create reliable outdoor kiosks that will capture audiences and differentiate your sunlight readable outdoor display.

- Charging Stations
- Payment & Ticketing
- Vending Machine
- Outdoor ATM & Banking
- Wayfinding & Signage

Simplify kiosk deployment and management.
Transform Elo touchscreens into an affordable, scalable, single-architecture media platform with EloView® and the Android Backpack. With simplified content-delivery and remote-management capabilities, managing isolated outdoor kiosks out-of-the-box is simplified.

Powerful computing.
The Elo Backpack delivers a powerful, commercial-grade Android 10 compute engine designed to simplify the deployment of content, websites and Android- based apps across your interactive experiences. Purpose-built to fit in compact spaces, the Elo Backpack boasts a small footprint in both size and weight to secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.

Take advantage of Elo's feature-rich Android ecosystem.
With easy-to-use development kits, robust management tools, world-class life cycle management, and a comprehensive security model, Elo helps companies deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.

Touch thru glass enabled with PCAP.
Our TouchPro® PCAP technology supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or outdoor touchscreen kiosk solutions requiring adherence to specific IP/IK ratings. Whether you need a flush-mounted display or one fully encased in glass, our robust PCAP touchscreen is purpose-built for outdoor durability.

Flexibility for your install.
Elo’s waterproof touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether end users are viewing up close or from a distance, with or without polarized sunglasses, our optically bonded outdoor digital signage display offers what you need while maintaining optimal clarity for the viewing experience.



Viktiga egenskaper

Elo Touch Solutions E399052. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black



Teknisk specifikation

Display diagonal	27 "
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	TFT
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	40
Response time	8 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1280 x 960,1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Contrast ratio (typical)	3000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Horizontal scan range	30 - 135 kHz
Vertical scan range	24 - 64 Hz

NVIDIA G-SYNC	No
AMD FreeSync	No

Built-in speaker(s)	No
Built-in camera	No

Product colour	Black
Certification	UL 62368-1 FCC cUL, IC CB (IEC/EN60950-1+IEC/EN62368-1) CE VCCI RCM CCC, RoHS IK07, UL60950

Built-in USB hub	Yes
USB Touch port	Yes
USB Touch ports quantity	1
HDMI	Yes
HDMI ports quantity	2
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone out	Yes
Headphone outputs	1
HDCP	Yes

VESA mounting	Yes
Panel mounting interface	400 x 400 mm
Wall mountable	Yes
On Screen Display (OSD)	Yes

Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	76 kWh
Power consumption (typical)	44 W
Power consumption (standby)	1.43 W
Power consumption (off)	0.29 W
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 90 %

Cables included	AC,HDMI,USB

Width (without stand)	415 mm
Depth (without stand)	66 mm
Height (without stand)	658 mm
Weight (without stand)	13600 g

Package width	565 mm
Package depth	230 mm
Package height	820 mm
Package weight	16600 g

Sustainability certificates	ENERGY STAR

Placement supported	Horizontal/Vertical
Mean time between failures (MTBF)	50000 h
