Produktbeskrivning

Interactive Display

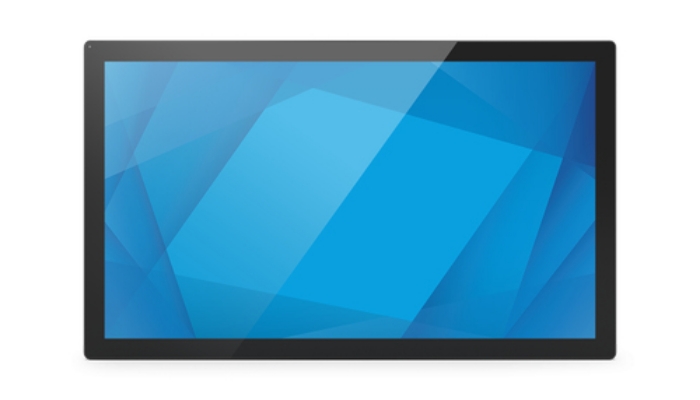

Elevate your applications with Elo’s 3204L 32‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 3204L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 32‑inch tablet.

Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.

Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 3204L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays
can be mounted behind a mirror, in a counter or in a fully encased
kiosk for added durability or aesthetics.

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in
landscape, portrait and tabletop orientations, providing optimal
flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance,
Elo’s 3204L delivers the reliability and durability businesses need even in the most
demanding conditions. With the addition of extended product life cycles and global
certifications, you can trust in the long-term performance and suitability of the 3204L
for diverse international markets.



Viktiga egenskaper

Elo Touch Solutions TouchPro PCAP. Product design: Kiosk design. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	31.5 "
Display technology	LED
Panel type	TFT-LCD
Display resolution	1920 x 1080 pixels
Display brightness	400 cd/m²
HD type	Full HD
Touchscreen	Yes
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Maximum frame rate	60 fps

HDMI ports quantity	2
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
USB port	Yes
USB connector type	USB Type-C
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
RS-232 interface	Yes

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	5 W

Product design	Kiosk design
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	400 x 400 mm

Purpose	Universal
On Screen Display (OSD)	Yes
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	45 W
Power consumption (standby)	2.3 W
Power consumption (off)	0.29 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Display width	763.7 mm
Display depth	49.6 mm
Display height	458.1 mm
Display weight	10900 g

Package width	905 mm
Package depth	160 mm
Package height	680 mm
Package weight	15280 g

Cables included	AC

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Certification	FCC
