Produktbeskrivning

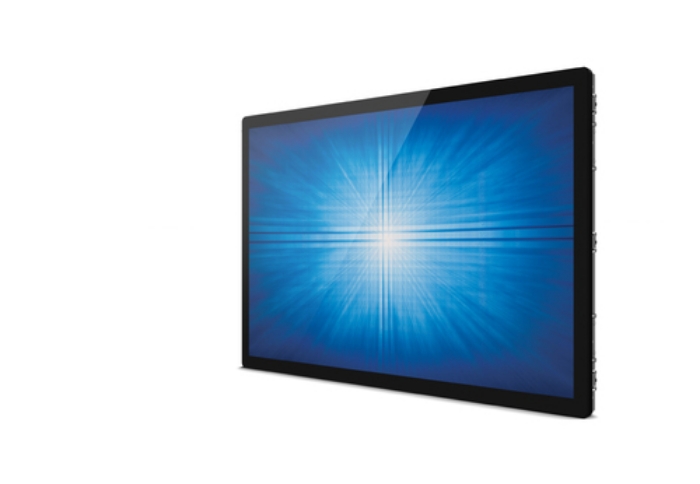

The perfect touchscreen for any enclosure.Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
Brilliant, interactive TouchPro PCAP display.
The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Designed for easy integration.
Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Viktiga egenskaper
Elo Touch Solutions 3263L. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Teknisk specifikation
Display
| Display diagonal | 31.5 " |
|---|
| Display technology | LED |
|---|
| Panel type | TFT |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| Display brightness | 500 cd/m² |
|---|
| HD type | Full HD |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen technology | Projected capacitive system |
|---|
| Number of simultaneous touchpoints | 40 |
|---|
| Native aspect ratio | 16:9 |
|---|
| Response time | 8 ms |
|---|
| Contrast ratio (typical) | 3000:1 |
|---|
| Viewing angle, horizontal | 178 ° |
|---|
| Viewing angle, vertical | 178 ° |
|---|
| Display number of colours | 16.78 million colours |
|---|
Ports & interfaces
| HDMI ports quantity | 1 |
|---|
| HDMI version | 1.4 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Design
| Product colour | Black |
|---|
| Screen shape | Flat |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 400 x 200 mm |
|---|
| Anti-glare screen | Yes |
|---|
Performance
| On Screen Display (OSD) | Yes |
|---|
| HDCP | Yes |
|---|
| Mean time between failures (MTBF) | 50000 h |
|---|
Power
| Power consumption (typical) | 44.3 W |
|---|
| Power consumption (standby) | 0.61 W |
|---|
| Power consumption (off) | 0.2 W |
|---|
| Energy efficiency class (SDR) | E |
|---|
| Energy consumption (SDR) per 1000 hours | 26 kWh |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Energy efficiency scale | A to G |
|---|
Packaging data
| Package width | 1000 mm |
|---|
| Package depth | 306 mm |
|---|
| Package height | 680 mm |
|---|
| Package weight | 17030 g |
|---|
Packaging content
| Cables included | AC,HDMI,USB,VGA |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 90 % |
|---|
Features
| Wall mountable | Yes |
|---|
Other features
| Maximum refresh rate | 60 Hz |
|---|
| Height (without stand) | 452.7 mm |
|---|
| Depth (without stand) | 55 mm |
|---|
| Built-in microphone | No |
|---|
| Viewable size, vertical | 529.254 mm |
|---|
| Viewable size, horizontal | 940.86 mm |
|---|
| Digital vertical frequency | 47 - 63 Hz |
|---|
| Weight (without stand) | 10990 g |
|---|
| Digital horizontal frequency | 31.5 - 80 kHz |
|---|
| Built-in camera | No |
|---|
