Produktbeskrivning

Interactive Display

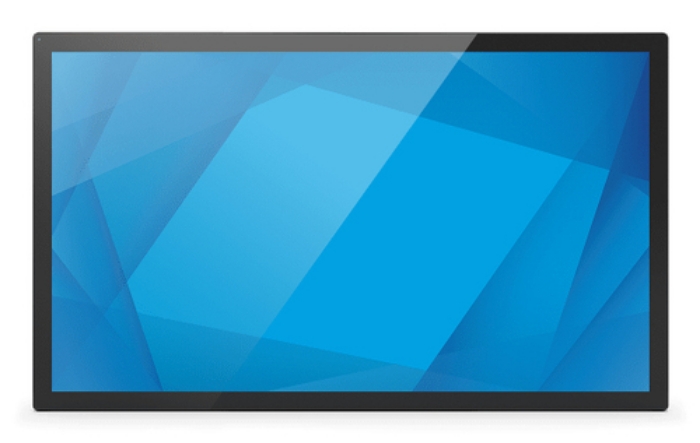

Elevate your applications with Elo’s 4304L 43‑inch touch screen monitor that brings
interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast
responsiveness, and anti-friction glass, Elo's 4304L prioritizes the user experience. And
by combining the touch display with the Elo Backpack or a Brightsign player, you can
effortlessly convert this display into a versatile, life-sized 43‑inch tablet.

The back of your display never looked so clean.

Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with
EloView, Crestron or your preferred MDM solution via provided APIs.

Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.

Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 4304L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 4304L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 4304L for diverse international markets.



Viktiga egenskaper

Elo Touch Solutions 4304L. Product design: Interactive flat panel. Display diagonal: 108 cm (42.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black



Teknisk specifikation

Display diagonal	42.5 "
Display technology	LED
Panel type	TFT-LCD
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	2
Response time	8 ms
Contrast ratio (typical)	500:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Active display area (W x H)	940.9 x 529.3 mm
Number of displays	1
Horizontal scan range	30 - 70 kHz
Vertical scan range	24 - 64 Hz

HDMI ports quantity	2
HDMI version	1.4
HDMI input ports quantity	2
DisplayPorts quantity	1
DisplayPort version	1.2
USB port	Yes
USB connector type	Micro-USB,USB Type-A,USB Type-C
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	16 W

Product design	Interactive flat panel
Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100,400 x 400 mm
Mounting type	Desk/Wall

On Screen Display (OSD)	Yes
Ambient light sensor	Yes
Operating hours (hours/days)	24/7
HDCP	Yes
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	47 W
Power consumption (sleep)	1.43 W
Power consumption (off)	0.29 W
Energy consumption (SDR) per 1000 hours	41 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Display width	1007.4 mm
Display depth	55.6 mm
Display height	595.7 mm
Display weight	17870 g

Package width	1150 mm
Package depth	187 mm
Package height	820 mm
Package weight	22960 g

Tilt adjustment	Yes
Cables included	Power,USB Type-C to USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Certification	UL 62368-1, FCC/CEC, cUL, IC, CB (International safety) (IEC/EN60950-1+IEC/EN62368-1), CE, VCCI, RCM, CCC/CEL, China RoHS, NOM Mexico, IK07, UL60950

Wall mountable	Yes

Aspect ratio	16:9
