Produktbeskrivning

Interactive Display

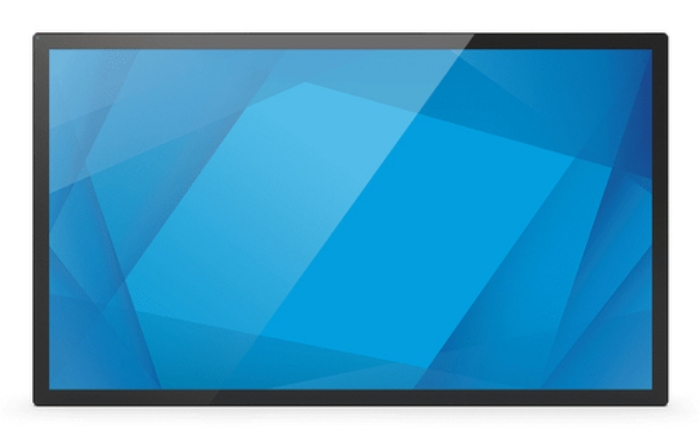

Elevate your applications with Elo’s 5054L 50‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5054L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 50‑inch tablet.

Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.

Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 5054L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 5054L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5054L for diverse international markets.



Viktiga egenskaper

Elo Touch Solutions 5054L. Product design: Interactive flat panel. Display diagonal: 127 cm (50"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black



Teknisk specifikation

Display diagonal	50 "
Display technology	LED
Panel type	TFT-LCD
Display resolution	3840 x 2160 pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Touchscreen technology	Infrared
Multi-touch	Yes
Number of simultaneous touchpoints	20
Response time	9.5 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Active display area (W x H)	1095.8 x 616.4 mm
Number of displays	1
Vertical scan range	24 - 64 Hz
Horizontal scan range	30 - 135 kHz

HDMI ports quantity	2
HDMI version	2.0
HDMI input ports quantity	2
DisplayPorts quantity	1
DisplayPort version	1.4
USB port	Yes
USB connector type	Micro-USB,USB Type-A,USB Type-C
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	16 W

Product design	Interactive flat panel
Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Panel mounting interface	100 x 100,400 x 400 mm
Mounting type	Wall

On Screen Display (OSD)	Yes
Ambient light sensor	Yes
Operating hours (hours/days)	24/7
HDCP	Yes
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	99 W
Power consumption (sleep)	1.8 W
Power consumption (off)	0.28 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	75 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Display width	1161.1 mm
Display depth	63.4 mm
Display height	681.7 mm
Display weight	24420 g

Package width	1310 mm
Package depth	187 mm
Package height	940 mm
Package weight	30890 g

Tilt adjustment	Yes
Cables included	Power,USB Type-C to USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Wall mountable	Yes

Aspect ratio	16:9
