Produktbeskrivning

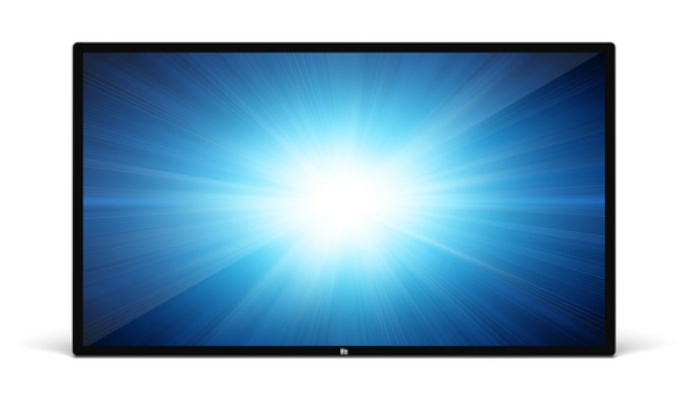

Elo's 55-inch, 4K touchscreen display adds interactivity to any environment. Perfect for everything from endless aisle and brand experiences to collaborative meetings, conferencing and whiteboarding, the 5553L offers a sleek, slim design built to withstand the rigors of continuous commercial use. Easily turn the display into a powerful, 55-inch, all-in-one, life-size tablet by adding an Elo computer module. Available with either PCAP (with anti-glare or clear glass with anti-friction) or infrared (with anti-glare) touch technologies, the professional-grade, large-format display integrates easily into any environment.



Viktiga egenskaper

Elo Touch Solutions 5553L. Product design: Interactive flat panel. Display diagonal: 138.8 cm (54.6"), Display technology: TFT, Display resolution: 3840 x 2160 pixels, Display brightness: 430 cd/m², HD type: 4K Ultra HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	54.64 "
Display technology	TFT
Display resolution	3840 x 2160 pixels
Display brightness	430 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Multi-touch	Yes
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1100:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Active display area (W x H)	1209.6 x 680.4 mm
Vertical scan range	47 - 63 Hz
Horizontal scan range	121.8 - 140 kHz

HDMI ports quantity	3
HDMI input ports quantity	2
HDMI output ports quantity	1
DVI port	No
VGA (D-Sub) input ports	0
DisplayPorts quantity	1
USB port	Yes
USB ports quantity	2
USB version	3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W

Product design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Yes
Panel mounting interface	400 x 400,600 x 600 mm

Purpose	Universal
On Screen Display (OSD)	Yes
HDCP	Yes
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	111.87 W
Power consumption (sleep)	1.52 W
Power consumption (off)	0.38 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width	1271.8 mm
Depth	80 mm
Height	742.6 mm
Weight	36800 g

Package weight	46470 g

Cables included	AC,HDMI,Serial,USB

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Certification	UL 62368-1 FCC (US) cUL, IC (Canada) CB (International safety) (IEC/EN60950-1+IEC/EN62368-1) CE (Europe) RCM (Australia) VCCI (Japan) CCC

Harmonized System (HS) code	85285210

Sustainability certificates	ENERGY STAR
