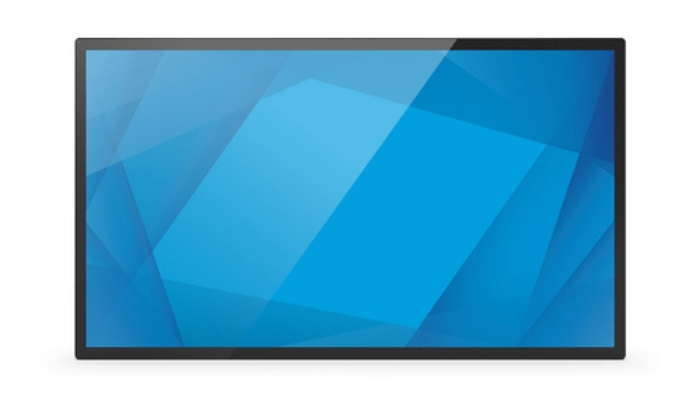

Elevate your applications with Elo’s 5554L 55‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5554L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 55‑inch tablet.

Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 5554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5554L for diverse international markets.



Viktiga egenskaper

Elo Touch Solutions 5554L 55. Product design: Interactive flat panel. Display diagonal: 138.7 cm (54.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 430 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black



Teknisk specifikation

Display diagonal	54.6 "
Display technology	LCD
LED backlight	Yes
Panel type	LCD
Display resolution	3840 x 2160 pixels
Display brightness	430 cd/m²
HD type	4K Ultra HD
Touchscreen	Yes
Multi-touch	Yes
Number of simultaneous touchpoints	40
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1100:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.07 billion colours
Active display area (W x H)	1209.6 x 680.4 mm
Horizontal scan range	30 - 135 kHz
Vertical scan range	24 - 64 Hz

HDMI ports quantity	2
HDMI version	2.0
DVI port	No
DisplayPorts quantity	1
DisplayPort version	1.4
USB port	Yes
USB ports quantity	2
USB connector type	Mini-USB A,USB Type-A
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	20 W

Product design	Interactive flat panel
Product colour	Black
Placement supported	Indoor
VESA mounting	Yes
Panel mounting interface	400 x 400,600 x 600 mm

Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	111.87 W
Power consumption (standby)	0.38 W
Power consumption (sleep)	1.52 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width	1271.8 mm
Depth	742.6 mm
Height	60.2 mm
Weight	50000 g

Package width	1460 mm
Package depth	1040 mm
Package height	225 mm
Package weight	38520 g

Cables included	AC,USB

Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Certification	UL, FCC, cUL, IC (Canada), CB, CE, VCCI, RCM, CCC/CEL, China RoHS, NOM, UL60950, IK07

Sustainability certificates	ENERGY STAR

Maximum refresh rate	60 Hz
