Produktbeskrivning

Razor thin design.
Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 7-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.

Available in a range of sizes from 7- to 15-inch.

Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.

A clean slate for touch experiences.

The perfect pairing for your POS terminal.
The 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.

Get peace of mind with EloCare.SM
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.



Viktiga egenskaper

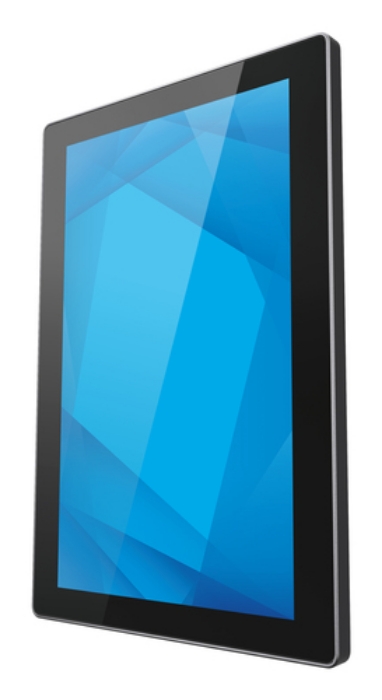

Elo Touch Solutions 0704LS. Product design: Digital signage flat panel. Display diagonal: 17.8 cm (7"), Display technology: LED, Display resolution: 1280 x 800 pixels, Display brightness: 400 cd/m², Touchscreen. Product colour: Grey



Teknisk specifikation

Display diagonal	7 "
Display technology	LED
Panel type	TFT-LCD
Display resolution	1280 x 800 pixels
Display brightness	400 cd/m²
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Multi-touch	Yes
Number of simultaneous touchpoints	10
Response time	35 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	176 °
Viewing angle, vertical	176 °
Display number of colours	16.7 million colours
Active display area (W x H)	149.76 x 93.6 mm
Display diagonal (metric)	178 cm
Number of displays	1
Horizontal scan range	30 - 60 kHz
Native refresh rate	60 Hz

USB port	Yes
USB connector type	USB Type-C
Ethernet LAN	No

Built-in speaker(s)	No

Product design	Digital signage flat panel
Product colour	Grey
Orientation	Horizontal/Vertical
Screen shape	Flat
VESA mounting	Yes
Anti-glare screen	Yes

On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN

Power consumption (typical)	4.8 W
Power consumption (sleep)	0.8 W
Power consumption (off)	0.15 W
Energy efficiency class (SDR)	C
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Display width	173.06 mm
Display depth	14.6 mm
Display height	121.56 mm
Display weight	320 g

Package width	232 mm
Package depth	71 mm
Package height	168 mm
Package weight	670 g

Cables included	USB Type-C

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Quantity per pack	1 pc(s)

Aspect ratio	16:10
