Produktbeskrivning

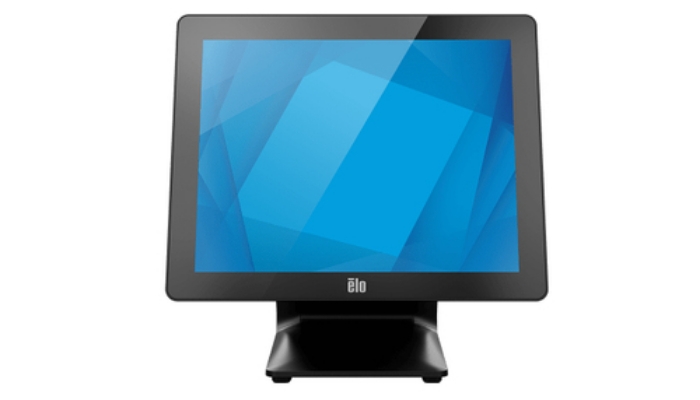

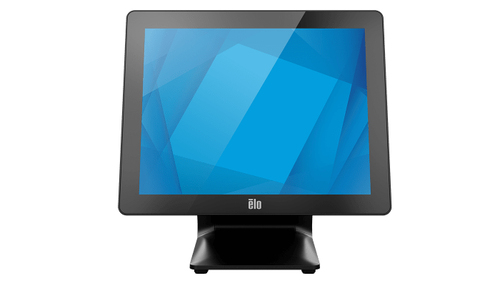

Completely redesigned I‑Series 3 with Intel.

Brilliant and beautiful, interactive platform.

Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.

Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 24V Powered USB
- 2x 12V Powered USB
- 12V/24V Cash Drawer
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2

Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Get peace of mind with EloCare.SM
- Advance Unit Replacement
- Extended Warranty
- Professional Services



Viktiga egenskaper

Elo Touch Solutions E700385. Display diagonal: 39.6 cm (15.6"), Display resolution: 1024 x 768 pixels, Display type: TFT. Processor family: Intel® Celeron®, Processor manufacturer: Intel, Processor frequency: 1.1 GHz. Internal memory: 8 GB, Maximum internal memory: 32 GB, Memory slots type: SO-DIMM. Total storage capacity: 128 GB, Storage media: SSD. Graphics card manufacturer: Intel, Graphics card: UHD Graphics



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1024 x 768 pixels
Touchscreen	Yes
Display type	TFT
Effective viewing area	304.1 x 228.1 mm
Response time	23 ms
Touchscreen technology	Projected capacitive system
Aspect ratio	4:3
Contrast ratio (typical)	800:1
Display number of colours	262144 colours
Display brightness	340 cd/m²
Viewing angle, vertical	150 °
Viewing angle, horizontal	160 °

Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor frequency	1.1 GHz
Processor cache	8 MB

Internal memory	8 GB
Maximum internal memory	32 GB
Number of memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz

Total storage capacity	128 GB
Storage media	SSD
NVMe	Yes

Graphics card manufacturer	Intel
Graphics card	UHD Graphics

Built-in speaker(s)	Yes
Number of speakers	2

Ethernet LAN	Yes
Bluetooth	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)

Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DC-in jack	Yes

Product colour	Black

Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	No

AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (typical)	34 W
Power supply	180 W

Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C

VESA mounting	Yes
Panel mounting interface	75 x 75 mm

Width	359.5 mm
Depth	197.5 mm
Height	356 mm
Weight	6700 g

Quantity per pack	1 pc(s)
Package width	497 mm
Package depth	345 mm
Package height	487 mm
Package weight	7900 g

Cables included	Power
Quick start guide	Yes

Cable lock slot	Yes
Cable lock slot type	Kensington
