Produktbeskrivning

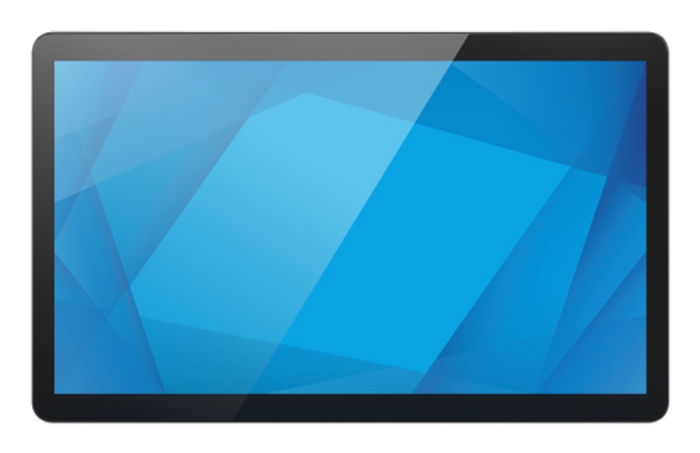

1504L 15-inch Touchscreen Monitor
The 1504L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 15” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.

Create the perfect payment stack with the 15" touchscreen.
Easily pair the 15-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1504L offers the perfect compact touch display with the connectivity you need at the point of sale.

State of the art optical viewing.
Designed with high quality optical bonding, anti-glare coverglass and low-blue light settings - the 1504L 15-inch touch­screen monitor brings the best-in-class solution for viewing comfort and clarity.

Secure your cables into place.
Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.

Connect accessories to the edge.
Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.

Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.

Expand the possibilities with touch through.
Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.

Get peace of mind with EloCareSM.
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.

Quality that is built to last.
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.



Viktiga egenskaper

Elo Touch Solutions 1504L. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD. Product colour: Black, Mean time between failures (MTBF): 50000 h. Power source type: DC, USB, Power: 12.1 W, AC adapter input voltage: 90 - 264 V. Width: 371 mm, Depth: 26.9 mm, Height: 227.5 mm. Package width: 451 mm, Package depth: 220 mm, Package height: 342 mm



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
HD type	Full HD
Display type	TFT
Display brightness	450 cd/m²
Touchscreen	Yes
Touchscreen type	Projected Capacitive (PCAP)
Effective viewing area	344.16 x 193.59 mm
Response time	25 ms
Native refresh rate	60 Hz
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °
Number of colours	16.78 million colours
Contrast ratio (typical)	1000:1
Native aspect ratio	16:9
Panel type	TFT-LCD

Product colour	Black
VESA mounting	Yes
Mean time between failures (MTBF)	50000 h

Power source type	DC,USB
AC adapter input voltage	90 - 264 V
Power	12.1 W
AC adapter output voltage	12 V

Width	371 mm
Height	227.5 mm
Depth	26.9 mm
Weight	1700 g

Package depth	220 mm
Package height	342 mm
Package width	451 mm
Package weight	3800 g

Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 95 %
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Compliance certificates	BIS,BSMI,CB,CE,China Compulsory Certification (CCC),China RoHS,Federal Communications Commission (FCC),Industry Canada (IC),KCC,Norma Oficial Mexicana (NOM),PSE,RCM,REACH,RoHS,UKCA,UL,VCCI,WEEE,cUL
