Produktbeskrivning

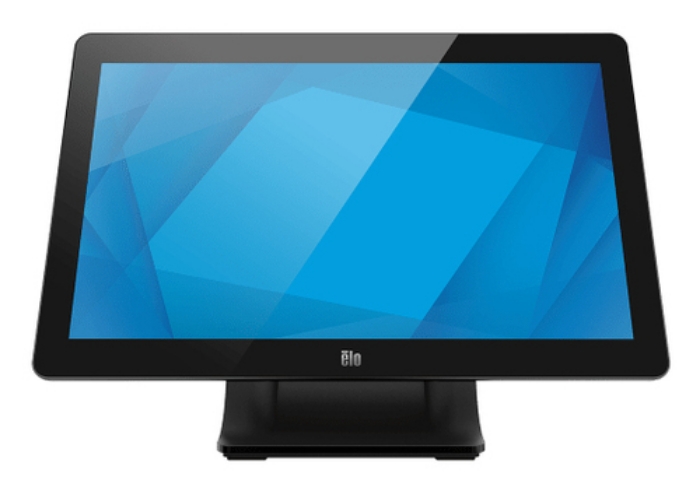

The Elo 1509L 15.6-inch widescreen LED touchscreen monitor delivers a low-profile, retail-hardened solution with a pure glass construction to allow high light transmission without compromising durability or functionality. Available with TouchPro® PCAP offering multi touch capacity, the 1509 has been "built for touch" offering an ideal solution for general applications including hospitality and retail environments.
Integrated touch.With no moving parts to wear out, the 1509 offers a touch response that is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus.
Flexible mounting.The touchscreen monitor can be affixed to a counter, or when the stand is removed, mounted on a wall or to a pole, and with the LED backlight power consumption is significantly reduced.
Commercial grade.The 15.6-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our two-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Viktiga egenskaper
Elo Touch Solutions 1509L. Product design: Digital signage flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1366 x 768 pixels, Display brightness: 200 cd/m², Touchscreen. Product colour: Black
Teknisk specifikation
Display
| Display diagonal | 15.6 " |
|---|
| Display technology | LED |
|---|
| Panel type | TFT-LCD |
|---|
| Display resolution | 1366 x 768 pixels |
|---|
| Display brightness | 200 cd/m² |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen technology | Projected capacitive system |
|---|
| Multi-touch | Yes |
|---|
| Response time | 12 ms |
|---|
| Contrast ratio (typical) | 500:1 |
|---|
| Viewing angle, horizontal | 90 ° |
|---|
| Viewing angle, vertical | 60 ° |
|---|
| Active display area (W x H) | 344.23 x 193.55 mm |
|---|
| Display diagonal (metric) | 419.1 cm |
|---|
| Number of displays | 1 |
|---|
| Native refresh rate | 60 Hz |
|---|
| Vertical scan range | 50 - 75 Hz |
|---|
| Horizontal scan range | 31.5 - 82 kHz |
|---|
Ports & interfaces
| HDMI ports quantity | 1 |
|---|
| USB port | Yes |
|---|
| USB connector type | USB Type-B |
|---|
| DC-in jack | Yes |
|---|
Audio
| Built-in speaker(s) | No |
|---|
Design
| Product design | Digital signage flat panel |
|---|
| Product colour | Black |
|---|
| Orientation | Horizontal |
|---|
| Screen shape | Flat |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 75 x 75,100 x 100 mm |
|---|
| Stand type | Center stand |
|---|
Performance
| On Screen Display (OSD) | Yes |
|---|
| On Screen Display (OSD) languages | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN |
|---|
| Number of OSD languages | 8 |
|---|
| International Protection (IP) code | IPX1 |
|---|
| Mean time between failures (MTBF) | 50000 h |
|---|
Power
| Power consumption (typical) | 6.41 W |
|---|
| Power consumption (sleep) | 0.84 W |
|---|
| Power consumption (off) | 0.21 W |
|---|
| Energy efficiency class (SDR) | C |
|---|
| Energy consumption (SDR) per 1000 hours | 8 kWh |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Energy efficiency scale | A to G |
|---|
Weight & dimensions
| Width (with stand) | 283.4 mm |
|---|
| Depth (with stand) | 173.5 mm |
|---|
| Height (with stand) | 387.1 mm |
|---|
| Weight (with stand) | 2642 g |
|---|
Packaging data
| Package width | 450 mm |
|---|
| Package depth | 260 mm |
|---|
| Package height | 326 mm |
|---|
| Package weight | 4760 g |
|---|
Packaging content
| Stand included | Yes |
|---|
| Stand colour | Black |
|---|
| Cables included | USB Type-A to USB Type-B,VGA |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
Other features
| Manual | Yes |
|---|
| Aspect ratio | 16:9 |
|---|
