Produktbeskrivning

Completely redesigned
I‑Series 3 with Intel.

Brilliant and beautiful,
interactive platform.

- 10-touch TouchPro PCAP
- Fanless, IP54 rated design
- Full HD IPS Touchscreen
- Easy to clean edge-to-edge glass
- 50,000 MTBF

Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2



Viktiga egenskaper

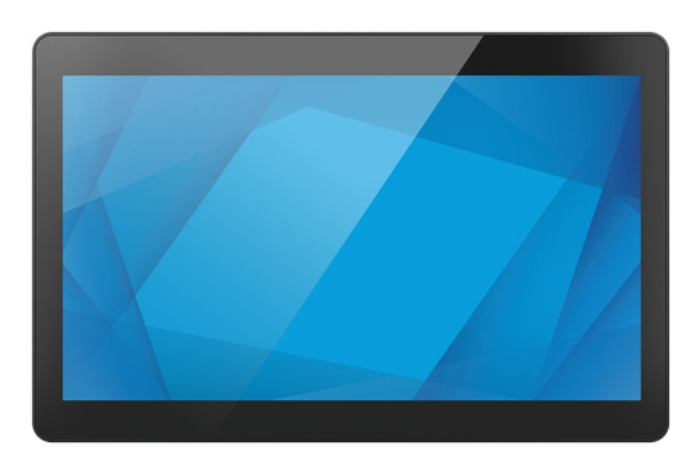

Elo Touch Solutions I-Series E605332. Product type: All-in-One PC. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Panel type: LCD. Processor family: Intel® Celeron®, Processor frequency: 1.1 GHz. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Product colour: Black



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9
Display brightness	350 cd/m²
Panel type	LCD

Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	7305L
Processor cores	5
Processor frequency	1.1 GHz
Performance cores	1
Efficient cores	4
Performance-core Max Turbo Frequency	1.1 GHz
Performance-core boost frequency	1.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor base power	15 W
Maximum turbo power	28 W

Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	32 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Memory layout (slots x size)	1 x 8 GB
Memory form factor	DIMM/SO-DIMM

Total storage capacity	128 GB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
Optical drive type	No

Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Built-in camera	No

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB4 Gen 3x2 ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	0
Headphone outputs	1
DC-in jack	Yes

Product colour	Black
On/off button	Yes

Product type	All-in-One PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
HDD user password	Yes

Operating system installed	No

AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	24 V

Width (with stand)	384.1 mm
Depth (with stand)	37.2 mm
Height (with stand)	147.7 mm
Weight (with stand)	3100 g
Package width	481 mm
Package depth	345 mm
Package height	197 mm
Package weight	5000 g

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Certification	Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S-Mark; Brazil ANATEL; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS CoC
