Produktbeskrivning

Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.

Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.



Viktiga egenskaper

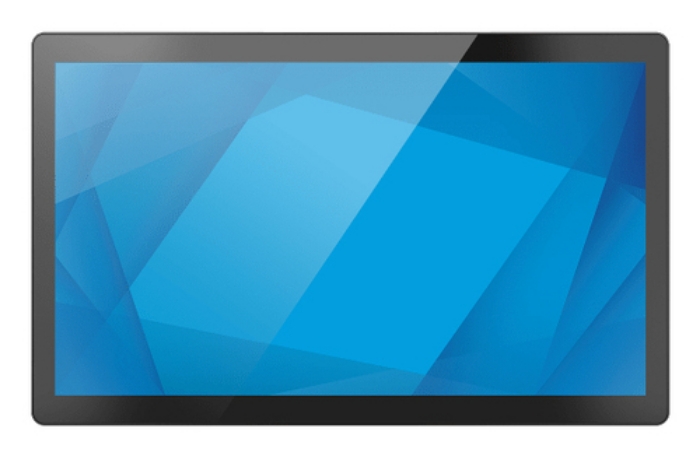

Elo Touch Solutions I-Series 3.0. Product type: All-in-One PC. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Touchscreen, Screen shape: Flat, Panel type: TFT. Processor family: Intel® Celeron®, Processor frequency: 1.1 GHz. Internal memory: 8 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. On-board graphics card model: Intel® UHD Graphics. Product colour: Black



Teknisk specifikation

Display diagonal	17 "
Display resolution	1280 x 1024 pixels
Touchscreen	Yes
HD type	Not supported
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	5:4
Display brightness	250 cd/m²
Display surface	Anti-glare
Panel type	TFT
Response time	25 ms
Screen shape	Flat
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °

Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	7305L
Processor cores	5
Processor threads	5
Processor boost frequency	1.1 GHz
Processor frequency	1.1 GHz
Performance cores	1
Efficient cores	4
Performance-core Max Turbo Frequency	1.1 GHz
Efficient-core Max Turbo Frequency	1.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor base power	15 W

Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	32 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	4800 MHz
Memory layout (slots x size)	1 x 8 GB

Total storage capacity	128 GB
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	1
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	M.2
NVMe	Yes
SSD form factor	M.2
Optical drive type	No

Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Built-in camera	No

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
Headphone outputs	1

Product colour	Black
Panel mounting interface	75 x 75 mm
Wall mountable	Yes
VESA mounting	Yes

Product type	All-in-One PC
Market positioning	Business
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	No

AC adapter power	180 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	24 V
Power consumption (standby)	5 W
Power consumption (typical)	33 W
Power consumption (off)	0.5 W

Pen included	No

Width (with stand)	359.5 mm
Depth (with stand)	197.5 mm
Height (with stand)	356 mm
Weight (with stand)	6700 g
Package width	497 mm
Package depth	487 mm
Package height	345 mm
Package weight	7900 g

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Compliance certificates	CB,CCC,Federal Communications Commission (FCC),Norma Oficial Mexicana (NOM),RCM,RoHS,State Radio Regulation of China (SRRC),UKCA,VCCI
Certification	UL/cUL, FCC, IC, CE, CB

Sustainability certificates	ENERGY STAR

Power cord included	Yes
Quick start guide	Yes

3D	No
Mean time between failures (MTBF)	50000 h
Autonomy mode	No
Warranty period	33 year(s)
