Produktbeskrivning

DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

DICOM 14 -
Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
- Nurse Station
- Patient Rooms
- Laboratory
- Pharmacy
- Operating Theatres
- Medical Carts

Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.



Viktiga egenskaper

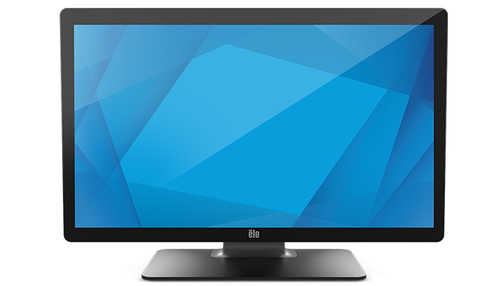

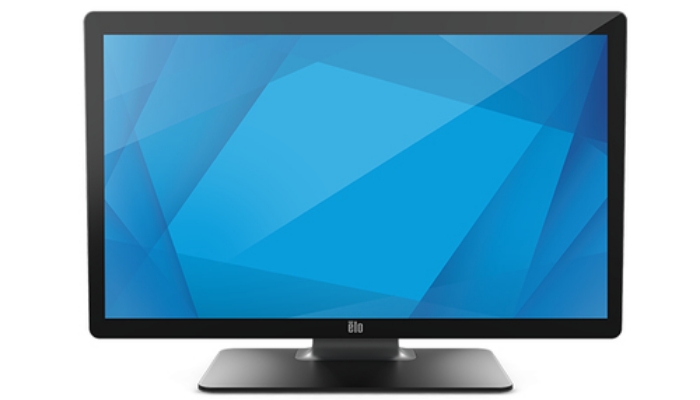

Elo Touch Solutions E659596. Display diagonal: 68.6 cm (27"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 270 cd/m², HD type: Full HD, Touchscreen. Product colour: Black



Teknisk specifikation

Display diagonal	27 "
Display technology	LED
Display resolution	1920 x 1080 pixels
Display brightness	270 cd/m²
HD type	Full HD
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Native aspect ratio	16:9
Response time	14 ms
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.78 million colours
Display diagonal (metric)	69 cm
Vertical scan range	50 - 75 Hz
Supported graphics resolutions	640 x 400,640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+)
Horizontal scan range	30 - 82 kHz

Built-in speaker(s)	Yes
RMS rated power	2 W

Product colour	Black
Screen shape	Flat
VESA mounting	Yes
Anti-glare screen	Yes

International Protection (IP) code	IP54
Mean time between failures (MTBF)	50000 h

Power consumption (typical)	22.41 W
Power consumption (standby)	1.006 W
Power consumption (off)	0.24 W
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	21 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Width (with stand)	450.9 mm
Depth (with stand)	647.6 mm
Height (with stand)	233 mm
Weight (with stand)	10270 g

Package width	560 mm
Package depth	764 mm
Package height	322 mm
Package weight	14280 g

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 95 %

Maximum refresh rate	60 Hz
Display viewable area (HxV)	597.88 x 336.31 mm
Power supply type	AC/DC
Weight (without stand)	7130 g
