DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

Easy to Clean
Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy

Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.



Viktiga egenskaper

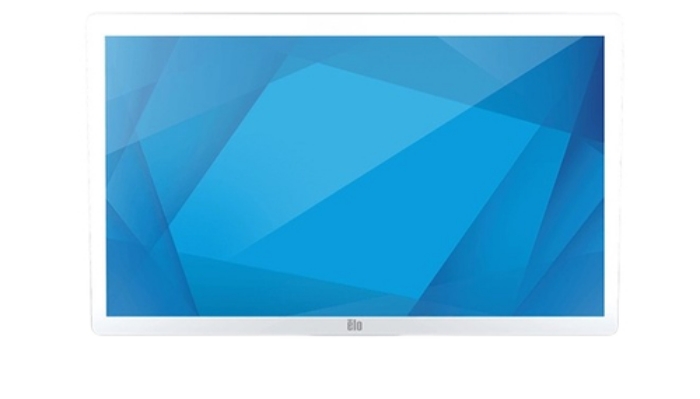

Elo Touch Solutions 2703LM. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White



Teknisk specifikation

Display diagonal	27 "
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	Yes
HD type	Full HD
Panel type	TFT
Touchscreen technology	Projected capacitive system
Number of simultaneous touchpoints	10
Display brightness	300 cd/m²
Response time	14 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 400,640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Contrast ratio (typical)	1000:1
Maximum refresh rate	70 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Horizontal scan range	30 - 82 kHz
Vertical scan range	50 - 75 Hz
Viewable size, horizontal	597.88 mm
Viewable size, vertical	336.31 mm
Display diagonal (metric)	68.6 cm

Built-in speaker(s)	Yes
Built-in camera	No
RMS rated power	2 W

Market positioning	Medical
Product colour	White
International Protection (IP) code	IP54
Certification	UL: AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012/IEC 60601-1 Ed. 3.1 cUL: (CAN/CSA-C22.2 NO. 60601-1:14 /IEC60601-1 Ed. 3.1 CB: IEC 60601-1:2005+A1:2012 (Ed. 3.1) CE: IEC 60601-1-2:2014 (Ed. 4) Risk M

USB version	2.0
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
Headphone connectivity	3.5 mm
DC-in jack	Yes

VESA mounting	Yes
Wall mountable	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
Number of OSD languages	10
LED indicators	Power

Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	21 kWh
Power consumption (typical)	17.37 W
Power consumption (standby)	1 W
Power consumption (max)	22.41 W
Power consumption (off)	0.24 W
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 95 %

Cables included	HDMI,USB,VGA

Width (without stand)	394.1 mm
Depth (without stand)	44.9 mm
Height (without stand)	647.6 mm
Weight (without stand)	7130 g

Package width	520 mm
Package depth	187 mm
Package height	770 mm
Package weight	10410 g

Sustainability compliance	Yes

Compliance certificates	BIS,BSMI,CB,CE,China Compulsory Certification (CCC),China RoHS,EAC,Federal Communications Commission (FCC),KCC,RCM,REACH,RoHS,UKCA,VCCI,WEEE,cUL

USB connector type	Micro-USB,USB Type-A,USB Type-B
Active display area (W x H)	597.88 x 336.31 mm
USB ports quantity	6
USB 2.0 ports quantity	1
Placement supported	Indoor
Display viewable area (HxV)	597.88 x 336.31 mm
Mean time between failures (MTBF)	50000 h
