Produktbeskrivning

The bezel just got smaller.
The 2770L 27” touchscreen offers up to a 70% reduction in the bezel compared to similar models.

Built-in speakers and integrated IO.
Place it on a desktop, mount it on a wall or configure the 2770L to fit your space with VESA-compatibility. Built-in speakers and integrated IO.

Durable, energy efficient touchscreen.
Scratch-resistant glass surface. IK07 impact resistant. ES8.0 certified for greater energy efficiency.

Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.



Viktiga egenskaper

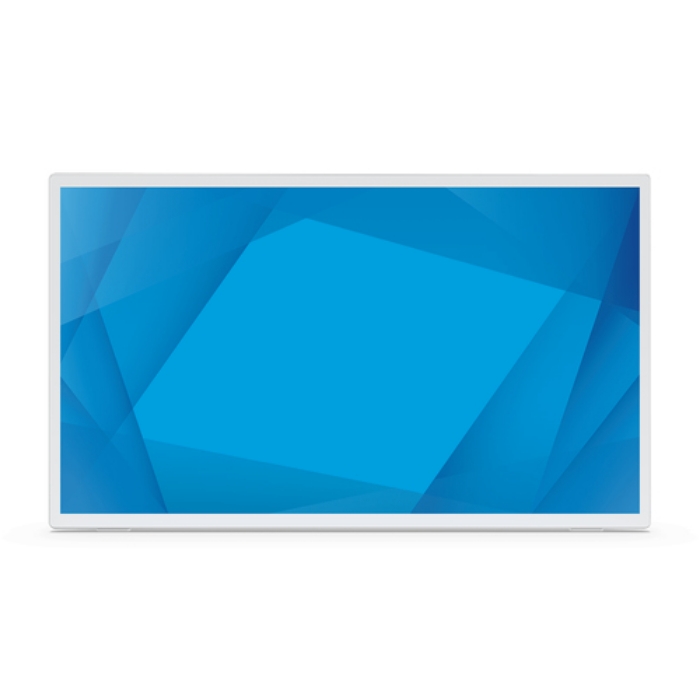

Elo Touch Solutions Elo 2770L. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: White



Teknisk specifikation

Display diagonal	27 "
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	TFT
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness (peak)	300 cd/m²
Display brightness (typical)	270 cd/m²
Response time	14 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 400,640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800,1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Contrast ratio (typical)	1000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Digital horizontal frequency	30 - 82 kHz
Digital vertical frequency	50 - 75 Hz

NVIDIA G-SYNC	No
AMD FreeSync	No

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	4 W

Market positioning	Business
Product colour	White

Built-in USB hub	Yes
USB hub version	2.0
USB upstream port type	USB Type-A,USB Type-B
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	2
USB Touch port	Yes
USB Touch ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	No
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN

Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
Power consumption (typical)	19 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.16 W
Power consumption (PowerSave)	16.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 95 %

Width (without stand)	626.2 mm
Depth (without stand)	372.8 mm
Height (without stand)	43.8 mm
Weight (without stand)	6300 g

Package width	703 mm
Package depth	136 mm
Package height	489 mm
Package weight	9450 g
