Produktbeskrivning

The bezel just got smaller.

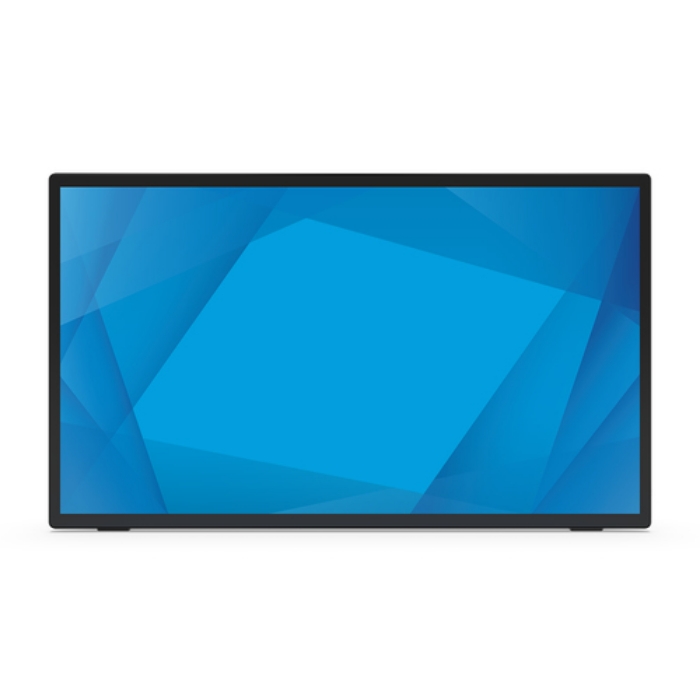

The 2770L 27” touchscreen
offers up to a 70% reduction
in the bezel compared to
similar models.

Minimalistic design to fit any space.

From 20 degrees to 70 degrees, angle the display where you want it.

Place it on a desktop, mount it on a wall or configure the 2770L to fit your space with VESA-compatibility.

Built-in speakers and integrated IO.

Durable, energy efficient touchscreen.
Scratch-resistant glass surface. IK07 impact resistant.
ES8.0 certified for greater energy efficiency.

Increase viewing comfort with low blue light and flicker free features.

Navigate the OSD directly on the touchscreen.
We have made it easier to manage your
On-Screen Display (OSD) controls – Now you
can use the touchscreen or the controls you
are used to on the rear side of the monitor.



Viktiga egenskaper

Elo Touch Solutions E510644. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black



Teknisk specifikation

Display diagonal	27 "
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	Yes
HD type	Full HD
Panel type	TFT
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Display brightness (peak)	270 cd/m²
Response time	8 ms
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1280 x 960,1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Contrast ratio (typical)	1000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	16.7 million colours
Horizontal scan range	30 - 82 kHz
Vertical scan range	50 - 75 Hz

NVIDIA G-SYNC	No
AMD FreeSync	No

Built-in speaker(s)	Yes
Built-in camera	No
Number of speakers	2
RMS rated power	4 W
Built-in microphone	No

Product colour	Black
Certification	CUL, IC CCC CE UKCA KCC BSMI FCC, UL VCCI, PSE CB RCM EAC CoC RoHS, WEEE, REACH BIS

Built-in USB hub	Yes
USB Touch port	Yes
USB Touch ports quantity	1
HDMI	Yes
HDMI ports quantity	2
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone out	Yes
Headphone outputs	1
HDCP	Yes

VESA mounting	Yes
Wall mountable	Yes
Height adjustment	No
On Screen Display (OSD)	Yes

Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	18 kWh
Power consumption (typical)	19 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.16 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	10 - 95 %

Cables included	AC,HDMI,USB

Width (without stand)	626.2 mm
Depth (without stand)	372.8 mm
Height (without stand)	43.8 mm
Weight (without stand)	6300 g

Package width	703 mm
Package depth	136 mm
Package height	489 mm
Package weight	9450 g

Sustainability certificates	ENERGY STAR

Mean time between failures (MTBF)	50000 h
