Produktbeskrivning

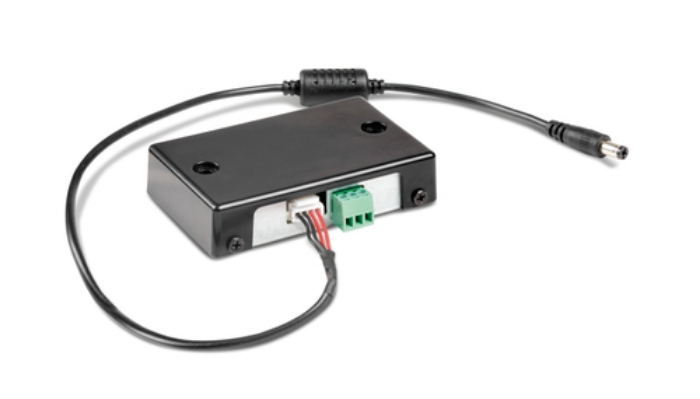

The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection. On the 1598L open frame touchscreen there are mounting features that enable the converter to be mounted on the back of the monitor. The power converter can also be used with other Elo 90-Series open frames via other kiosk mounting options.



Viktiga egenskaper

Elo Touch Solutions E239980. Width: 90.7 mm, Depth: 57.1 mm, Height: 20.4 mm. Input current: 1.9 A, DC input voltage: 24 V, Output current: 3500 mA



Teknisk specifikation

Input current	1.9 A
DC input voltage	24 V
Output voltage	12 V
Output current	3500 mA

Width	90.71 mm
Height	20.4 mm
Depth	57.06 mm
Weight	110 g

Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	10 - 95 %
Product colour	Black
Operating relative humidity (H-H)	20 - 80 %
