Produktbeskrivning

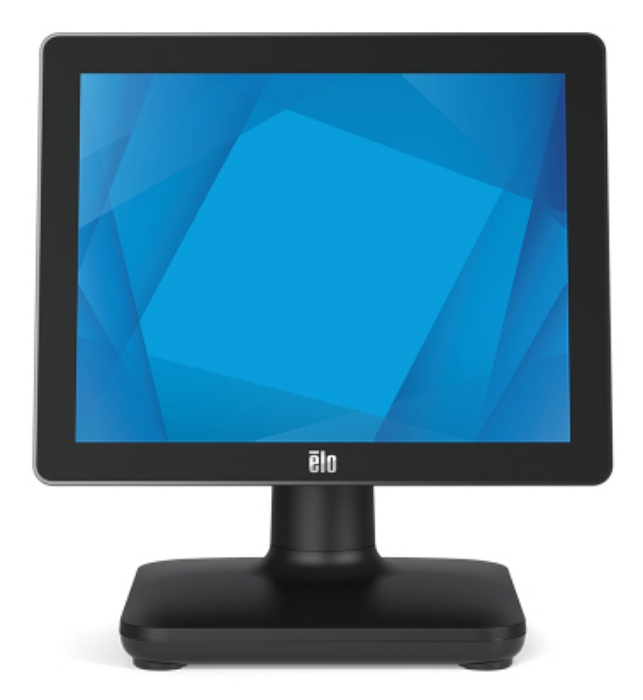

EloPOS System
Modern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 17-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.

Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.

Connections. Connections. Connections.
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.

Add a Customer-Facing Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.

Elo Edge Connect Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Windows or Linux. You Choose.
EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.

Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.



Viktiga egenskaper

Elo Touch Solutions 17-inch (5:4) EloPOS. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display type: LED. Processor family: Intel® Core™ i5, Processor model: i5-8500T, Processor manufacturer: Intel. Internal memory: 8 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 32 GB. Total storage capacity: 128 GB, Storage media: SSD, SSD capacity: 128 GB. Graphics card manufacturer: Intel, Graphics card: UHD Graphics 630



Teknisk specifikation

Display diagonal	17 "
Display resolution	1280 x 1024 pixels
Touchscreen	Yes
Display type	LED
Response time	5 ms
Effective viewing area	337.9 x 270.3 mm
Aspect ratio	5:4
Touchscreen technology	Projected capacitive system
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	1000:1
Display number of colours	16.78 million colours

Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8500T
Processor cores	6
Processor threads	6
Processor frequency	2.1 GHz
Processor cache	9 MB
System bus rate	8 GT/s
Motherboard chipset	Intel Q370

Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Number of memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2400 MHz

Total storage capacity	128 GB
Storage media	SSD
Number of storage drives supported	1
SSD capacity	128 GB
SSD interface	Serial ATA
SSD form factor	M.2

Graphics card manufacturer	Intel
Graphics card	UHD Graphics 630

Certification	UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

Built-in speaker(s)	Yes
Number of speakers	2

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Serial ports quantity	2

Chassis type	All-in-One
Product colour	Black

Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 10

AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power supply	180 W
Power consumption (typical)	76 W

Operating temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 35 %
Relative humidity	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Mean time between failures (MTBF)	50000 h

Width	393.5 mm
Depth	325.9 mm
Height	83.3 mm
Width (with stand)	393.5 mm
Depth (with stand)	325.9 mm
Height (with stand)	221.3 mm
Weight	4800 g
Weight (with stand)	6700 g

Package width	476 mm
Package depth	197 mm
Package height	400 mm
Package weight	6800 g

Cable lock slot	Yes
Cable lock slot type	Kensington
