Produktbeskrivning

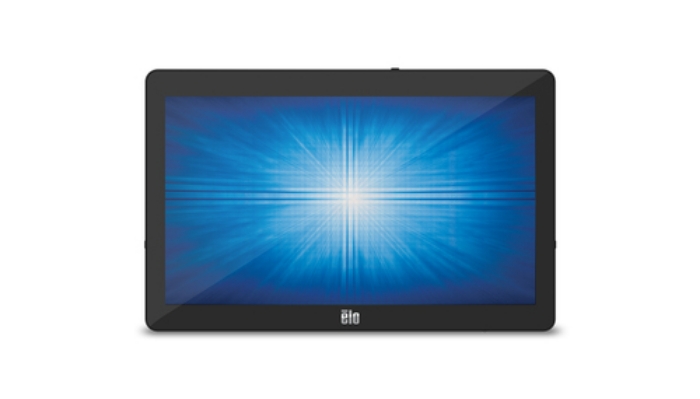

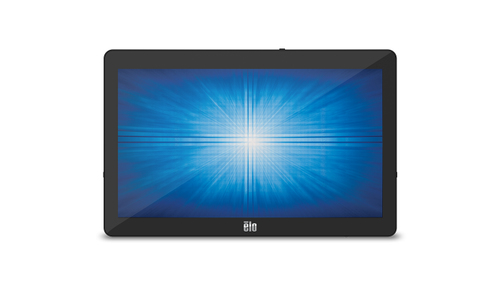

EloPOS™ System Modern. Modular. Made for Retail.

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.

Interactive Points of Sale

The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.

Connections. Connections. Connections.

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.

Configure Your Solution

EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.

Add a Customer-Facing
Display with Ease

The EloPOS System includes USB-C connectivity, allowing you to easily connect a customer-facing - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Windows or Linux. You Choose.

EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.

Retail-Hardened

Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare Advance Exchange options - making EloPOS the ideal product for point of sale applications.

Get Peace of Mind With EloCareSM

Your point of sale system is central to your operation, and no one wants to experience difficulty during the checkout process. With EloCare Advance Exchange, in the event you have an issue, all you have to do is call Elo. We will have you up and running as soon as possible by shipping you a replacement unit.*

*This program is available for customers within the United States and Canada.



Viktiga egenskaper

Elo Touch Solutions EloPOS. Display diagonal: 39.6 cm (15.6"), Display resolution: 1366 x 768 pixels, Display type: LCD. Processor family: Intel® Celeron®, Processor model: J4105, Processor frequency: 1.5 GHz. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 8 GB. Total storage capacity: 128 GB, Storage media: SSD, Storage media type: SSD. Graphics card manufacturer: Intel, Graphics card: UHD Graphics 600, Maximum on-board graphics card memory: 8 GB



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1366 x 768 pixels
Touchscreen	Yes
Display type	LCD
Display number of colours	262144 colours
Effective viewing area	344.2 x 193.5 mm
Display brightness	220 cd/m²
Viewing angle, horizontal	45 °
Touchscreen technology	Projected capacitive system
Contrast ratio (typical)	400:1
Aspect ratio	16:9
Response time	10 ms
Viewing angle, vertical	50 °

Processor family	Intel® Celeron®
Processor model	J4105
Processor cores	4
Processor threads	4
Processor frequency	1.5 GHz
Processor cache	4 MB

Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	8 GB
Number of memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2400 MHz

Total storage capacity	128 GB
Storage media	SSD
Storage media type	SSD
Number of storage drives supported	1
SSD interface	Serial ATA
SSD capacity	128 GB
SSD form factor	M.2

Graphics card manufacturer	Intel
Graphics card	UHD Graphics 600
Maximum on-board graphics card memory	8 GB

Certification	UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

Built-in speaker(s)	Yes
Number of speakers	2

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Wi-Fi	Yes

Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Line-out	Yes
DC-in jack	Yes

Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 10

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	24 V
Power consumption (typical)	24 W
Power supply	180 W

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Mean time between failures (MTBF)	50000 h

Width	386.2 mm
Depth	73.3 mm
Height	248.9 mm
Weight	2900 g

Package width	462 mm
Package depth	216 mm
Package height	346 mm
Package weight	4900 g

Cables included	AC,LAN (RJ-45),Serial
Quick start guide	Yes
Power adapter included	Yes

Cable lock slot	Yes
Cable lock slot type	Kensington

Harmonized System (HS) code	84715000

I/O ports	Micro USB 2.0, Cash Drawer, USB-C
