Produktbeskrivning

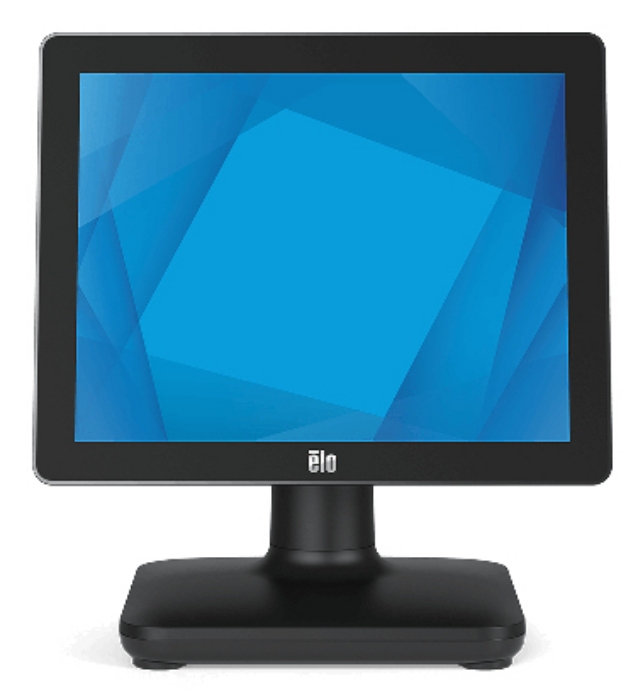

EloPOS System Modern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.

Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.

Connections. Connections. Connections.
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.

Add a Customer-Facing Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Windows or Linux. You Choose.
EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.

Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.



Viktiga egenskaper

Elo Touch Solutions EloPOS. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, Display type: LCD. Processor family: Intel® Celeron®, Processor model: G4900T, Processor manufacturer: Intel. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM, Maximum internal memory: 8 GB. Total storage capacity: 128 GB, Storage media: SSD, Storage media type: SSD. Graphics card manufacturer: Intel, Graphics card: UHD Graphics 610



Teknisk specifikation

Display diagonal	15 "
Display resolution	1024 x 768 pixels
Touchscreen	Yes
Display type	LCD
Display brightness	340 cd/m²
Touchscreen technology	Projected capacitive system
Viewing angle, vertical	160 °
Response time	23 ms
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Effective viewing area	304.1 x 228.1 mm
Aspect ratio	4:3
Display number of colours	262144 colours

Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	G4900T
Processor cores	2
Processor threads	2
Processor frequency	2.9 GHz
Processor cache	2 MB
System bus rate	8 GT/s
Motherboard chipset	Intel® H310

Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	8 GB
Number of memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2666 MHz

Total storage capacity	128 GB
Storage media	SSD
Storage media type	SSD
SSD capacity	128 GB
SSD interface	SATA
SSD form factor	M.2

Graphics card manufacturer	Intel
Graphics card	UHD Graphics 610

Built-in speaker(s)	Yes
Number of speakers	2

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Wi-Fi	Yes

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Powered USB	Yes
DisplayPorts quantity	1
Serial ports quantity	2
DC-in jack	Yes

Chassis type	Tablet
Product colour	Black

Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 10 IoT Enterprise LTSC
Operating system architecture	64-bit

AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power supply	180 W

Storage temperature (T-T)	-20 - 60 °C
Relative humidity	20 - 80 %
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Mean time between failures (MTBF)	50000 h

Width	359.7 mm
Depth	283.7 mm
Height	78.1 mm
Width (with stand)	359.7 mm
Depth (with stand)	359.7 mm
Height (with stand)	221.3 mm
Weight	5300 g

Quantity per pack	1 pc(s)
Package width	455 mm
Package depth	372 mm
Package height	509 mm
Package weight	8200 g

Cable lock slot	Yes
Cable lock slot type	Kensington

Sustainability certificates	ENERGY STAR

Compliance certificates	CE,CB,VCCI,CCC,Federal Communications Commission (FCC)
