Produktbeskrivning
A revolutionary interactive platform connecting hardware and software that is easy to use, quick to deploy and affordable. EloView is a secure management platform for remote content delivery and device management. Whether you need to push new content to a device or simply change the screen brightness, EloView delivers.
EloView is a software-as-a-service (SaaS) platform designed to simplify and automate the configuration and deployment of interactive displays across multiple locations. Use EloView to deliver your marketing content and create attractive, engaging, and educational public-facing interactive experiences.
Viktiga egenskaper

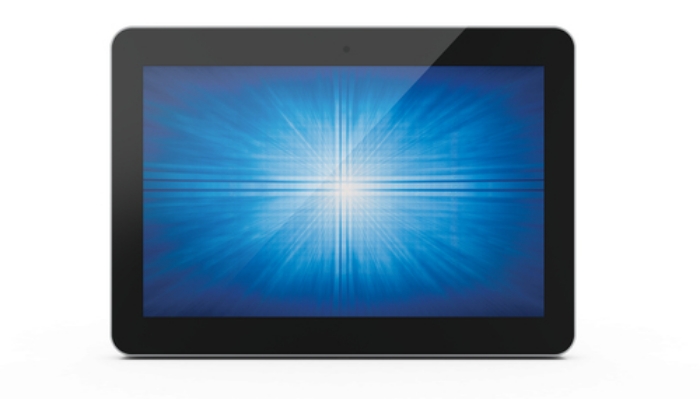

Elo Touch Solutions I-Series 2.0. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display brightness: 344 cd/m². Processor family: Snapdragon, Processor model: APQ8053, Processor frequency: 2 GHz. Internal memory: 3 GB, Internal memory type: DDR3L-SDRAM. Total storage capacity: 32 GB, Storage media: SSD, SSD capacity: 32 GB. Certification: UL/cUL, FCC (US) IC (Canada) CE (Europe) CB (International) CCC, SRRC, China RoHS (China) VCCI,...
Teknisk specifikation
Display
| Display diagonal | 10.1 " |
|---|
| Display resolution | 1280 x 800 pixels |
|---|
| Touchscreen | Yes |
|---|
| Effective viewing area | 216.96 x 135.6 mm |
|---|
| Response time | 25 ms |
|---|
| Viewing angle, horizontal | 170 ° |
|---|
| Viewing angle, vertical | 170 ° |
|---|
| Display brightness | 344 cd/m² |
|---|
| Touchscreen technology | Projected capacitive system |
|---|
| Contrast ratio (typical) | 800:1 |
|---|
| Aspect ratio | 16:10 |
|---|
| Display number of colours | 16.78 million colours |
|---|
Processor
| Processor family | Snapdragon |
|---|
| Processor model | APQ8053 |
|---|
| Processor cores | 8 |
|---|
| Processor frequency | 2 GHz |
|---|
Memory
| Internal memory | 3 GB |
|---|
| Internal memory type | DDR3L-SDRAM |
|---|
Storage
| Total storage capacity | 32 GB |
|---|
| Storage media | SSD |
|---|
| SSD capacity | 32 GB |
|---|
Features
| Certification | UL/cUL, FCC (US)
IC (Canada)
CE (Europe)
CB (International)
CCC, SRRC, China RoHS (China)
VCCI, MIC (Japan)
RCM (Australia) |
|---|
Multimedia
| Built-in speaker(s) | Yes |
|---|
| Number of speakers | 2 |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash) |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Wi-Fi | Yes |
|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
|---|
| DVI port | No |
|---|
Design
| Chassis type | All-in-One |
|---|
| Product colour | Black |
|---|
Software
| Operating system installed | Android 7.1 |
|---|
Power
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Power consumption (typical) | 10.2 W |
|---|
Operational conditions
| Relative humidity | 5 - 95 % |
|---|
| Operating relative humidity (H-H) | 20 - 80 % |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 50 °C |
|---|
Ergonomics
| Wall mountable | Yes |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 75 x 75 mm |
|---|
| Mean time between failures (MTBF) | 50000 h |
|---|
Weight & dimensions
| Width | 255.41 mm |
|---|
| Depth | 25.1 mm |
|---|
| Height | 181.11 mm |
|---|
| Weight | 880 g |
|---|
Packaging data
| Package width | 330 mm |
|---|
| Package depth | 140 mm |
|---|
| Package height | 250 mm |
|---|
| Package weight | 2070 g |
|---|
