Produktbeskrivning

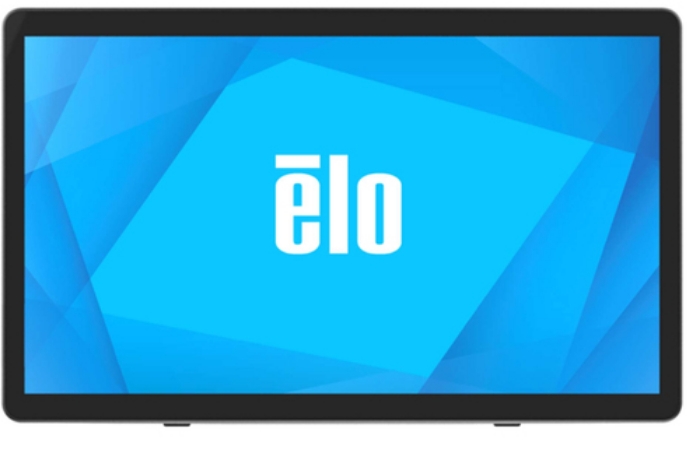

E-Series 3 with Intel
Touchscreen Computer.
The 15.6-inch E-Series 3 Touchcomputer features a 10-touch TouchPro™ PCAP
display, a powerful Intel™ N97 processor, and your choice of Windows 11 or No OS
with support for Linux. With integrated connectivity for all the peripherals you need—cash
drawers, printers, barcode scanners, and payment devices—the E-Series 3 delivers
the I/O flexibility to support a wide range of use cases.

Modular design.
Endless versatility.
Available with and without stand options, you can easily configure the E-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Add a customer-
facing display.
The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.

Expand with Elo
Edge Connect.
Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

Support
for Linux.
For added flexibility, the E-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Quality that
is built to last.
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.



Viktiga egenskaper

Elo Touch Solutions E-Series 3. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD. Product colour: Black, Mean time between failures (MTBF): 50000 h. Processor manufacturer: Intel, Processor base frequency: 3.6 GHz, Processor cache: 6 MB. Total storage capacity: 128 GB, Storage media: SSD. Internal memory: 8 GB, Internal memory type: DDR5, Maximum internal memory: 16 GB



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
HD type	Full HD
Display type	LED
Display brightness	200 cd/m²
Touchscreen	Yes
Touchscreen type	Capacitive
Panel type	TFT-LCD
Contrast ratio (typical)	500:1
Number of colours	262144 colours
Response time	25 ms
Native aspect ratio	16:9
LED backlight	Yes
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Native refresh rate	60 Hz

Product colour	Black
VESA mounting	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mean time between failures (MTBF)	50000 h

Processor manufacturer	Intel
Processor base frequency	3.6 GHz
Processor cache	6 MB

Total storage capacity	128 GB
Storage media	SSD

Optional connectivity	Bluetooth

Internal memory	8 GB
Internal memory type	DDR5
Maximum internal memory	16 GB
Memory clock speed	4800 MHz

Power source type	AC
Power consumption (standby)	0.5 W
Power	90 W
AC adapter frequency	50-60 Hz

Width	370.4 mm
Height	228.2 mm
Depth	40.5 mm
Weight	2400 g

Package depth	316 mm
Package height	185 mm
Package width	466 mm
Package weight	4200 g

Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Compliance certificates	Federal Communications Commission (FCC)
