Produktbeskrivning

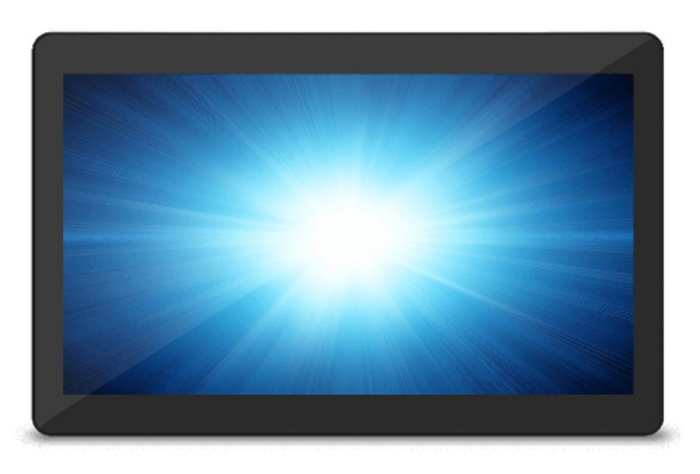

I-Series 2 with Intel
Elo's I-Series 2 with Intel delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Intel-based platform—all in a sleek, yet durable fixed tablet form factor.

Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series with Intel can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.

Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.

Feature-rich
Intel platform.

Windows, ChromeOS
Flex or Linux.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 9th-generation processors and vPro™ platform. Available with Windows 10, ChromeOS Flex or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.

Configure with Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

Stands & Mounts
With a standard VESA mount, we give you the flexibility to mount our products however you want.

Get Peace of Mind With EloCare
EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.



Viktiga egenskaper

Elo Touch Solutions I-Series 2. Product type: All-in-One tablet PC. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels, Touchscreen, Screen shape: Flat, Panel type: TFT-LCD. Processor family: Intel® Celeron®, Processor frequency: 2.9 GHz. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 128 GB, Storage media: SSD. Operating system installed: Windows 10 Enterprise. Product colour: Black



Teknisk specifikation

Display diagonal	15.6 "
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	300 cd/m²
Response time	25 ms
Panel type	TFT-LCD
Screen shape	Flat

Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	G4900T
Processor cores	2
Processor threads	2
Processor frequency	2.9 GHz
Processor cache	2 MB
Processor cache type	Smart Cache

Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2666 MHz
Memory layout (slots x size)	1 x 4 GB
Memory form factor	DIMM/SO-DIMM

Total storage capacity	128 GB
Storage media	SSD
Total SSDs capacity	128 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA
SSD form factor	M.2
Optical drive type	No

Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 610

Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W

Built-in camera	No

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Headphone outputs	1

Product colour	Black
Panel mounting interface	75 x 75 mm
VESA mounting	Yes

Product type	All-in-One tablet PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operating system installed	Windows 10 Enterprise
Operating system architecture	64-bit

AC adapter power	100 W
AC adapter frequency	50-60 Hz
AC adapter input voltage	100 - 240 V

Width (without stand)	384.2 mm
Depth (without stand)	246.4 mm
Height (without stand)	43.8 mm
Weight (without stand)	2200 g
Package width	462 mm
Package depth	216 mm
Package height	346 mm
Package weight	4300 g

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	5 - 95 %

Compliance certificates	CE,Federal Communications Commission (FCC),CB,UKCA,CCC,China Compulsory Certification (CCC),VCCI,Norma Oficial Mexicana (NOM)
